Product Details

Description

Features:

• High-frequency operation: up to 13.5 GHz
• Fixed divide ratio of 4
• Low-power operation:15 mA typical @ 2.6V
• SEL Immune due to UltraCMOS™
• SEU <10^-10 errors / bit-day
• 100 Krads (Si) Total Dose
• Small package: 8-lead Formed Flat pack
• Available as Die

Pinout

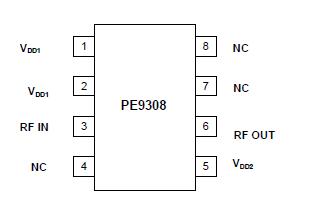

Connection Diagram

Specifications

Symbol	Parameter/Conditions	Min	Max	Units
V_DD	DC Supply voltage		4.0	V
T_ST	Storage temperature range	-65	150	°C
T_OP	Operating temperaturerange	-40	85	°C
V_ESD	ESD voltage (HumanBody Model)		250	V
P_INMAX	Maximum input power		14	dBm

Absolute Maximum Ratings are those values listed in the above table. Exceeding these values may cause permanent device damage. Exposure to absolute maximum ratings for extended periods may affect device reliability.

Description

The PE9308 is a high-performance dynamic UltraCMOS™ prescaler ideal for Ku band Transceiver applications. It has a fixed divide ratio of 4 with an operating frequency range of 4.0 GHz to 13.5 GHz. The PE9308 operates on a nominal 2.6 V supply and draws only 15 mA. It is packaged in a small 8-lead Flat Pack and is also available in Die form for Hybrid application.

The PE9308 is manufactured in Peregrine's patented Ultra Thin Silicon (UTSi©) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.
