Product Details

Description



Features:

• High-frequency operation: 1.5 GHz to 3.5 GHz
• Fixed divide ratio of 8
• Low-power operation: 12 mA typical @ 3 V across frequency
• Small package: 8-lead MSOP
• Low Cost


Pinout

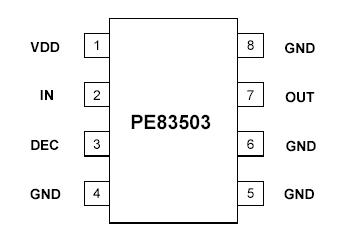

Connection Diagram


Specifications

Symbol Parameter/Conditions Min Max Units
VDD Power supply voltage -0.3 4.0 V
VI Voltage on any input -0.3 VDD
+ 0.3 		V
II DC into any input -10 +10 mA
Io DC into any output -10 +10 mA
Tstg Storage temperature
range 		-65 150



Description

The PE83503 is a high performance monolithic CMOS prescaler with a fixed divide ratio of 8. Its operating frequency range is 1.5 GHz to 3.5 GHz. The PE83503 operates on a nominal 3 V supply and draws only 12 mA. It is packaged in a small 8-lead MSOP and is ideal for microwave PLL synthesis solutions.

The PE83503 is manufactured in Peregrine's patented Ultra Thin Silicon (UTSi ) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.
