Product Details

Description



Features:

• High-frequency operation:
  1.5 GHz to 3.5 GHz
• Fixed divide ratio of 4
• Low-power operation: 12 mA
  typical @ 3 V across frequency
• Small package: 8-lead MSOP
• Low Cost

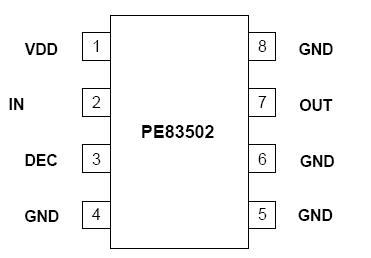

Pinout

Connection Diagram


Specifications

Symbol Parameter/Conditions Min Max Units
VDD Supply voltage -0.3 4.0 V
TST Storage temperature range -65 150 °C
TOP Operating temperature range -55 125 °C
VESD ESD voltage (Human Body Model)   250 V
PINMAX Maximum input power 15 dBm



Description

The PE83502 is a high performance monolithic CMOS prescaler with a fixed divide ratio of 4. Its operating frequency range is 1.5 GHz to 3.5 GHz. The PE83502 operates on a nominal 3 V supply and draws only 12 mA. It is packaged in a small 8-lead MSOP and is ideal for microwave PLL synthesis solutions.

The PE83502 is manufactured in Peregrine's patentedUltra Thin Silicon (UTSi) CMOS process, offering the performance of GaAs with the economy and integration of conventional CMOS.
