PE83336

Features:

• 3.0 GHz operation
• ÷10/11 dual modulus prescaler
• Internal phase detector
• Serial, parallel or hardwired programmable
• Ultra-low phase noise
• Available in 44-lead CQFJ

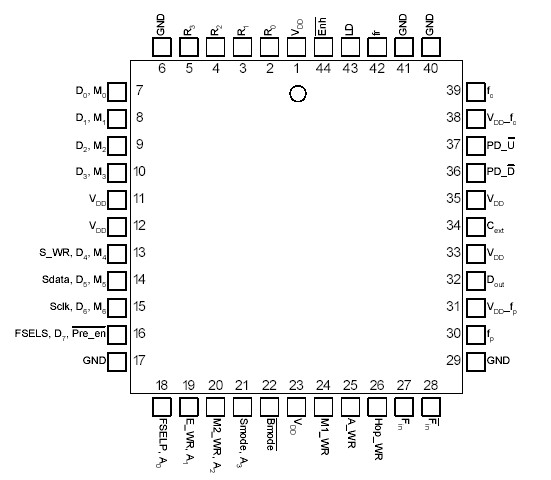

Pinout






Specifications

Symbol	Parameter/Conditions	Min	Max	Units
VDD	Storage temperature range	-0.3	4.0	°C
VI	Voltage on any input	-0.3	VDD + 0.3	°C
II	DC into any output	-10	+10	mA
IO	DC into any output	-10	+10	mA
Tstg	Storage temperature range	-65	150	V

Description

Peregrine's PE83336 is a high performance integer-N PLL capable of frequency synthesis up to 3.0 GHz. The superior phase noise performance of the PE83336 makes it ideal for rugged military environments including: radio handsets, radar, avionics, missiles, etc. The PE83336 features a 10/11 dual modulus prescaler, counters and a phase comparator. Counter values are programmable through either a serial or parallel interface and can also be directly hard wired. It is offered in a 44-lead CQFJ package.

Peregrine's PE83336 is a high performance integer-N PLL capable of frequency synthesis up to 3.0 GHz. The superior phase noise performance of the PE83336 makes it ideal for rugged military environments including: radio handsets, radar, avionics, missiles, etc.

The PE83336 features a 10/11 dual modulus prescaler, counters and a phase comparator as shown in Figure 1. Counter values are programmable through either a serial or parallel interface and can also be directly hard wired.

Fabricated in Peregrine's patented UTSi® (Ultra Thin Silicon) CMOS technology, the PE83336, while optimized for stringent military environments, offers excellent RF performance together with the economy and integration of conventional CMOS.
