PE3339

Features:

• 3.0 GHz operation
• ÷10/11 dual modulus prescaler
• Internal phase detector with charge pump
• Serial programmable
• Low power - 23 mA at 3 V
• Ultra-low phase noise
• Available in 20-lead TSSOP

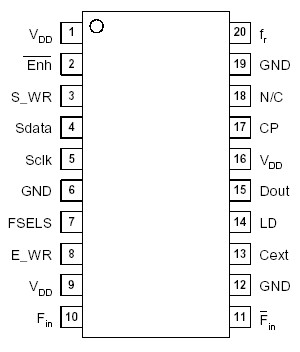

Pinout






Specifications

Symbol	Parameter/Conditions	Min	Max	Units
VDD	Supply voltage	-0.3	4.0	V
VI	Voltage on any input	-0.3	VDD+0.3	V
II	DC into any input	-10	+10	mA
IO	DC into any output	-10	+10	mA
Tstg	Storage temperature range	-65	150	°C

Description

The PE3339 is a high performance integer-N PLL capable of frequency synthesis up to 3.0 GHz. The superior phase noise performance of the PE3339 makes it ideal for applications such as wireless local loop basestations, LMDS systems and other demanding terrestrial systems. The PE3339 features a 10/11 dual modulus prescaler, counters, phase detector and a charge pump. Counter values are programmable through a three wire serial interface. It is offered in a 20-lead TSSOP package.Please download the new Phase Noise and Loop Filter Calculator listed below.
