PE3236

The PE3236 is designed as one kind of high performance integer-N PLL capable of frequency synthesis up to 2.2 GHz. PE3236 features a 10/11 dual modulus prescaler, counters and a phase comparator, and also optimized for terrestrial applications. PE3236 consists of a prescaler, counters, a phase detector and control logic. The dual modulus prescaler divides the VCO frequency by either 10 or 11, depending on the value of the modulus select.

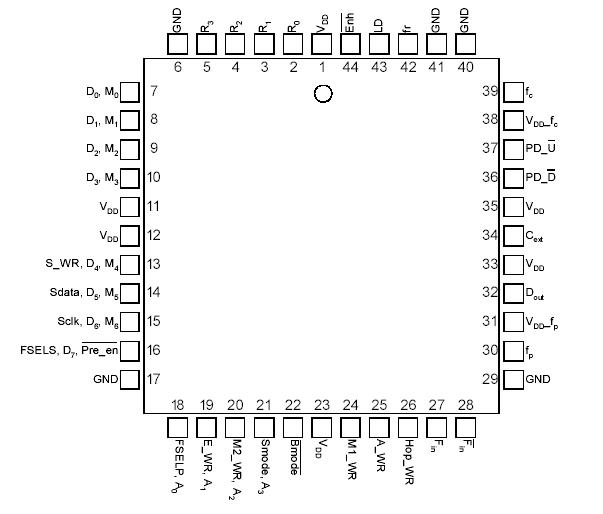

Features of the PE3236 are:(1)2.2 GHz operation; (2)0/11 dual modulus prescaler; (3)internal phase detector; (4)serial, parallel or hardwired programmable; (5)low power-22 mA at 3 V; (6)Q3236 PLL replacement; (7)ultra-low phase noise; (8)available in 44-lead PLCC package.

The absolute maximum ratings of the PE3236 can be summarized as:(1)supply voltage:-0.3 to 4.0 V;(2)voltage on any input:-0.3 to VDD+0.3 V;(3)DC into any input:-10 to +10 mA;(4)DC into any output:-10 to +10 mA;(5)storage temperature range:-65 to 150 °C;(6)ESD voltage (human body model):1000 V. If you want to know more information such as the electrical characteristics about PE3236, please download the datasheet in www.seekic.com or www.chinaicmart.com.
