Product Details

Description



Features:

·  Digitally programmable in 128 delay steps
·  Monotonic delay-versus-address variation
·  Two separate outputs: inverting & non-inverting
·  Precise and stable delays
·  Input & outputs fully TTL interfaced & buffered
·  10 T2L fan-out capability
·  Fits standard 40-pin DIP socket
·  Auto-insertable



Pinout

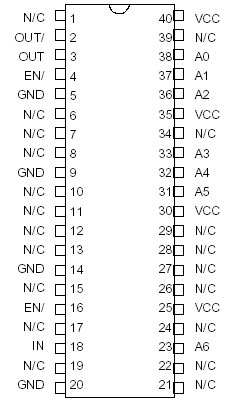

  Connection Diagram


Specifications

PARAMETER SYMBOL MIN MAX UNITS NOTES
DC Supply Voltage
Input Pin Voltage
Storage Temperature
Lead Temperature
VCC
VIN
TSTRG
TLEAD
-0.3
-0.3
-55
7.0
VDD+0.3
150
300
V
V
C
C


10 sec
