PDTB123Y

Features: Built-in bias resistors n Reduces component count Simplifies circuit design n Reduces pick and place costs 500 mA output current capability n ±10 % resistor ratio toleranceReduces component count Reduces pick and place costs ±10 % resistor ratio toleranceApplication Digital applic...

product image

PDTB123Y Picture
See larger image
SeekIC No. : 004457574 Detail

PDTB123Y: Features: Built-in bias resistors n Reduces component count Simplifies circuit design n Reduces pick and place costs 500 mA output current capability n ±10 % resistor ratio toleranceReduces c...

PDTB123Y Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PDTB123Y
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Built-in bias resistors n Reduces component count
Simplifies circuit design n Reduces pick and place costs
500 mA output current capability n ±10 % resistor ratio tolerance
Reduces component count
Reduces pick and place costs
±10 % resistor ratio tolerance


Application

Digital application in automotive andindustrial segments
Controlling IC inputs
Cost-saving alternative for BC807 seriesin digital applications
Switching loads


Pinout

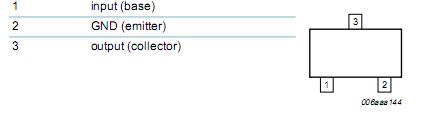

Connection Diagram




Specifications

Symbol

Parameter

Conditions

Min

Max

Unit

VCBO

collector-base voltage

open emitter

-

−50

V

VCEO

collector-emitter voltage

open base

-

−50

V

VEBO

emitter-base voltage

open collector

-

-5

V

VI

input voltage
positive
negative



-

+5
-12

V
V

IO

output current (DC)



-

-500

mA

Ptot

total power dissipation
SOT346
SOT54
SOT23

Tamb 25 °C; note 1

-

250
500
250

mW
mW
mW

Tstg

storage temperature



-55

   +150

°C

Tj

junction temperature



-

     150

°C

Tamb

operating ambient temperature



-55

   +150

°C




Description

PDTB123Y 500 mA PNP Resistor-Equipped Transistors (RET) family
