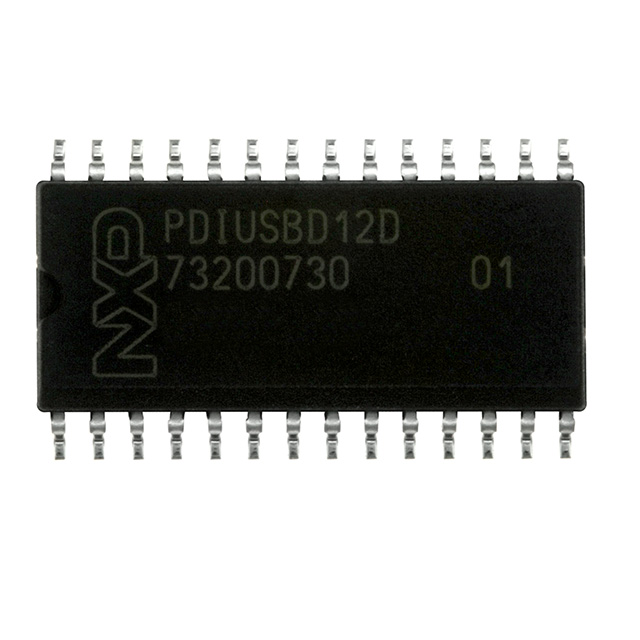

PDIUSBD12PW

The PDIUSBD12PW is a cost and feature optimized USB device. The features of PDIUSBD12PW are: (1)Complies with the Universal Serial Bus specification Rev. 2.0 (basic speed); (2)High performance USB interface device with integrated SIE, FIFO memory, transceiver and voltage regulator; (3)Compliant with most Device Class specifications; (4)High-speed (2 Mbytes/s) parallel interface to any external microcontroller or microprocessor; (5)Fully autonomous DMA operation; (6)Integrated 320 bytes of multi-configuration FIFO memory.

The following is about the absolute maximum ratings of PDIUSBD12PW: (1)supply voltage: -0.5 to +6.0 V; (2)input voltage -0.5 to VCC + 0.5 V; (3)latchup current: 100 mA at VI < 0 or VI > VCC ; (4)electrostatic discharge voltage: ±2000V at ILI < 1 mA; (5)storage temperature: -60 to +150 °C; (6)total power dissipation: 95mW at VCC = 5.5 V.

The electrical characteristics of the PDIUSBD12PW are: (1)LOW level input voltage: 0.8 V; (2)HIGH level input voltage: 2.0 V; (3)hysteresis voltage: 0.4V min and 0.7V max at ST (Schmitt Trigger) pins; (4)LOW level output voltage: 0.4V max at IOL = rated drive, IOL = 20 A; (5)HIGH level output voltage: 2.4v min at IOH = rated drive, IOH = 20 A; (6)OFF-state current: ±5 A at OD (Open Drain) pins; (7)input leakage current: ±5 A; (8)suspend current: 15A at oscillator stopped and inputs to GND/VCC; (9)operating current: 15 mA.
