Product Details

Description



Features:

· Low Cost
· Low Profile
· Available in Small SOIC-8 Package
· Tape & Reel

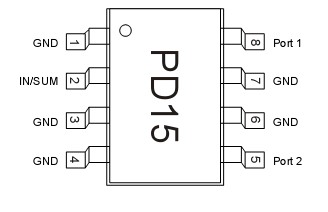

Pinout

Connection Diagram


Specifications

Characteristic

Value

Input Power1

+1.5 W CW

Input Power2

+0.75 CW

Operating Temperature

-40 to +85

Storage Temperature

-65 to +150


1.When used as a power divider with a 2.0:1 maximum VSWR on all ports.
2.When used as a power combiner with a 2.0:1 maximum VSWR on all ports.




Description

The PD15-12 is a monolithic two-way in-phase hybrid junction tuned for the 1.421.66 GHz band.It offers low loss, high isolation, good input/output matching and exceptional phase/amplitude balance.It is available in the SOIC-8 leaded surface mount package.
