Features: ` Multiplexer and Programmable-Gain Amplifier (PGA)
- 6*2-Channel Single-Ended Inputs
- Multiplexed Output
- Maximum Input Level: 2.4 V rms
- Input Resistance: 50 k, Minimum
- PGA Gain: 11 to 11 dB Range, 0.5 dB/Step
` 24-Bit Delta-Sigma Stereo A/D Converter
` Antialiasing Filter Included
` Oversampling Decimation Filter
- Oversampling Frequency: *64
- Pass-Band Ripple: ±0.05 dB
- Stop-Band Attenuation: 65 dB
- On-Chip High-Pass Filter: 0.91 Hz (48 kHz)
` High Performance
- THD+N: 0.0023% (Typically)
- SNR: 101 dB (Typically)
- Dynamic Range: 102 dB (Typically)
` PCM Audio Interface
- Master/Slave Mode Selectable
- Data Formats: 24-Bit Left Justified,24-Bit I2 S, 16-, 24-Bit Right Justified
` Mode Control by Serial Interface:
- With SPI Control (PCM1850)
- With I2 C Control (PCM1851)
` Sampling Rate: 1696 kHz
` System Clock: 256 fs, 384 fs, 512 fs, 768 fs
` Dual Power Supplies: 5 V for Analog, 3.3 V for Digital
` Package: 32-Pin TQFP
` Lead-Free Product
Application· DVD/HDD/DVD+HDD Recorder
· AV Amplifier Receiver
· CD Recorder
· MD Recorder
· Multi-Track Recorder
· Electric Musical Instrument

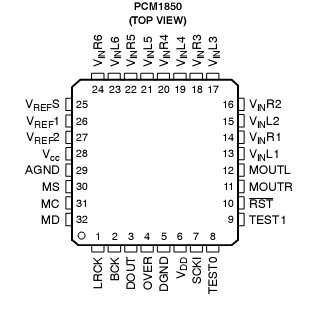

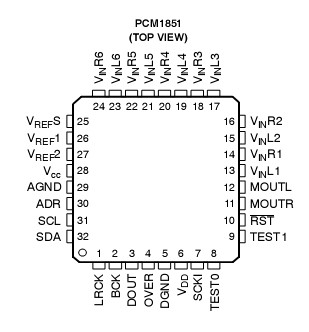

Pinout
Specifications
| Supply voltage: VCC |
0.3 V to 6.5 V |
| Supply voltage: VDD |
0.3 V to 4 V |
| Ground voltage differences: AGND, DGND |
±0.1 V |
| Digital input voltage: LRCK, BCK, DOUT, OVER |
0.3 V to (VDD + 0.3 V) < 4 V |
| Digital input voltage: RST, SCKI, MS (ADR)(2) , MC (SCL)(2) , MD (SDA)(2) , TEST0, TEST1 |
0.3 V to 6.5 V |
| Analog input voltage: VINL16, VINR16 |
3 V to (VCC + 3 V) < 9 V |
| Analog input voltage: MOUTL, MOUTR, VREF1, VREF2, VREFS |
0.3 V to (VCC + 0.3 V) < 6.5 V |
| Input current (any pins except supplies) |
±10 mA |
| Ambient temperature under bias |
40 to 125 |
| Storage temperature |
55 to 150 |
| Junction temperature |
150 |
| Lead temperature (soldering) |
260, 5 s |
| Package temperature (IR reflow, peak) |
260 |
(1)Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
(2)PCM1850 (PCM1851)
DescriptionThe PCM1850/1851 is a high-performance, low-cost, single-chip stereo analog-to-digital converter with a single-ended
analog front end that consists of a 6-stereo-input multiplexer and wide-range PGA. The PCM1850/1851 includes a delta-sigma modulator with 64-times oversampling, a digital decimation filter and a low-cut filter that removes the dc component of the input signal. For various applications, the PCM1850/1851 supports two modes (master and slave) and four data formats through a serial control interface, SPI for the PCM1850 and I2C for the PCM1851, respectively. The PCM1850/1851 is suitable for a wide variety of cost-sensitive DVD/CD/MD recorder and receiver applications where good performance and operation from a 5-V analog supply and 3.3-V digital supply is required. The PCM1850/1851 is fabricated using a highly advanced CMOS process and is available in a small 32-pin TQFP package.
