Features: ` 24-Bit Delta-Sigma Stereo A/D Converter
` Single-Ended Voltage Input: 3 Vp-p
` Oversampling Decimation Filter:
Oversampling Frequency: *64, *128
Pass-Band Ripple: ±0.05 dB
Stop-Band Attenuation: 65 dB
On-Chip High-Pass Filter: 0.84 Hz (44.1 kHz)
` High-Performance:
THD+N: 95 dB (Typically)
SNR: 103 dB (Typically)
Dynamic Range: 103 dB (Typically)
` PCM Audio Interface:
Master/Slave Mode Selectable
Data Formats:
` 24-Bit Left-Justified
` 24-Bit I2S
` 20-, 24-Bit Right-Justified
` Sampling Rate: 16 kHz to 96 kHz
` System Clock: 256 fS, 384 fS, 512 fS, 768 fS
` Dual Power Supplies: 5 V for Analog, 3.3 V for Digital
` Package: 20-Pin SSOP
` Pb-Free Product
Application· AV Amplifier Receiver
· MD Player
· CD Recorder
· Multitrack Receiver
· Electric Musical Instrument

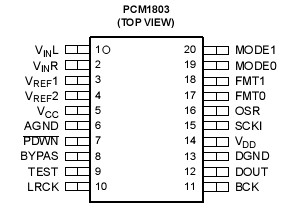

Pinout
Specifications
| Supply voltage |
VCC |
0.3 V to 6.5 V |
| Supply voltage |
VDD |
0.3 V to 4 V |
| Ground voltage differences |
AGND, DGND |
±0.1 V |
Digital input voltage, VI
|
LRCK, BCK, DOUT |
0.3 V to (VDD + 0.3 V) < 4 V |
Digital input voltage, VI
|
PDWN, BYPAS, TEST, SCKI, OSR, FMT0,
FMT1, MODE0, MODE1 |
0.3 V to 6.5 V |
| Analog input voltage, VI |
VIN L, VIN R, VREF 1, VREF 2
|
0.3 V to (VCC + 0.3 V) < 6.5 V
|
Input current, II
|
Any pins except supplies |
±10 mA |
Ambient temperature under bias, Tbias
|
|
40 to 125 |
Storage temperature, Tstg
|
|
55 to 150 |
Junction temperature, TJ
|
|
150 |
| Lead temperature (soldering) |
|
260, 5 s |
| Package temperature (IR reflow, peak) |
|
260 |
(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only and functional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.
DescriptionThe PCM1803 is high-performance, low-cost, single-chip stereo analog-to-digital converter with single-ended analog voltage input. The PCM1803 uses a delta-sigma modulator with 64-, 128-times oversampling, and includes a digital decimation filter and high-pass filter which removes the DC component of the input signal. For various appli-cations, the PCM1803 supports master and slave modes and four data formats in serial interface. The PCM1803 is suitable for a wide variety of cost-sensitive consumer applications where good per-formance and operation from a 5-V analog supply and 3.3-V digital supply are required. The PCM1803 is fabricated using a highly advanced CMOS process and is available in a small 20-pin SSOP package.
