PCM1781

Features: • 24-Bit Resolution• Analog Performance (VCC = 5 V): Dynamic Range: 106 dB SNR: 106 dB, Typical THD+N: 0.002%, Typical Full-Scale Output: 3.9 Vp-p, Typical• 4 * /8 * Oversampling Digital Filter: Stop-Band Attenuation: 50 dB Pass-Band Ripple: ± 0.04 dB• Samp...

product image

PCM1781 Picture
See larger image
SeekIC No. : 004456733 Detail

PCM1781: Features: • 24-Bit Resolution• Analog Performance (VCC = 5 V): Dynamic Range: 106 dB SNR: 106 dB, Typical THD+N: 0.002%, Typical Full-Scale Output: 3.9 Vp-p, Typical• 4 * /8 * ...

PCM1781 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCM1781
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 24-Bit Resolution
• Analog Performance (VCC = 5 V):
  Dynamic Range: 106 dB
  SNR: 106 dB, Typical
  THD+N: 0.002%, Typical
  Full-Scale Output: 3.9 Vp-p, Typical
• 4 * /8 * Oversampling Digital Filter:
  Stop-Band Attenuation: 50 dB
  Pass-Band Ripple: ± 0.04 dB
• Sampling Frequency: 5 kHz to 200 kHz
• System Clock: 128 f S , 192 f S , 256 f S , 384 f S ,
   512 fS , 768 fS , 1152 fS With Autodetect
• Software Control (PCM1780, PCM1782):
  Accepts 16-, 18-, 20-, and 24-Bit Audio Data
  Formats: Right-Justified, I2S, and
      Left-Justified
  Digital Attenuation: Mode Selectable
• 0 dB to 63 dB, 0.5 dB/step
• 0 dB to 100 dB, 1 dB/step
  Digital De-Emphasis
  Digital Filter Rolloff: Sharp or Slow
  Soft Mute
  Zero Flags for Each Output
  Open-Drain Output Zero Flag (PCM1782)
• Hardware Control (PCM1781):
  I2S and 16-Bit Word, Right-Justified
  Digital De-Emphasis
  Soft Mute
  Zero Flag for L-, R-Channel Common Output
• Power Supply: 5-V Single Supply
• Small, 16-Lead SSOP Package (150 mil)
• Pin-Compatible with PCM1680


Application

• A/V Receivers
• DVD Movie Players
• DVD Add-On Cards For High-End PCs
• DVD Audio Players
• HDTV Receivers
• Car Audio Systems
• Other Applications Requiring 24-Bit Audio


Pinout

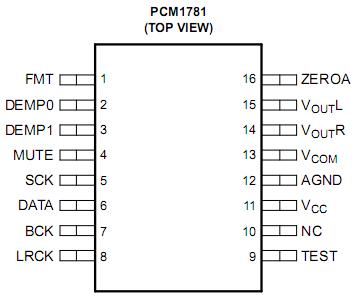

Connection Diagram




Specifications

  PCM1780, PCM1781, PCM1782
Supply voltage VCC 0.3 V to 6.5 V
Input voltage 0.3 V to VCC + 0.3 V, < 6.5 V
Input current (any pins except supplies) ± 10 mA
Ambient temperature under bias 40 to 125
Storage temperature 55   to 150
Junction temperature 150
Lead temperature (soldering) 260 , 5 s
Package temperature (IR reflow, peak) 260



Description

    The PCM1781 is a CMOS, monolithic, integrated circuit, which includes stereo digital-to-analog converters and support circuitry in a small 16-lead SSOP package. The data converters PCM1781 use TI ' s enhanced multilevel delta sigma architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1781 accepts industry standard audio data formats with 16- to 24-bit data, providing easy interfacing to audio DSP and decoder chips. Sampling rates up to 200 kHz are supported. The PCM1780/82 provides a full set of user-programmable functions through a three-wire serial control port, which supports register write functions. The PCM1781 provides a subset of user-programmable functions through four control pins.

    The PCM1780 is pin-compatible with the PCM1680 (8-channel DAC).
