PCM1770_1238650

(1) Stresses beyond those listed under "absolute maximum ratings" may cause permanent damage to the device. These are stress ratings only, and unctional operation of the device at these or any other conditions beyond those indicated under "recommended operating conditions" is not mplied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

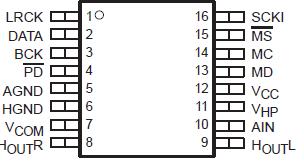

The PCM1770_1238650 devices are CMOS, onolithic, integrated circuits which include stereo igital-to-analog converters, headphone circuitry, and upport circuitry in small TSSOP-16 and VQFN-20 ackages.

The data converters PCM1770_1238650 use TI's enhanced multilevel - rchitecture, which employs noise shaping and ultilevel amplitude quantization to achieve excellent ynamic performance and improved tolerance to clock itter. The PCM1770_1238650 accept everal industry standard audio data formats with 16- to 4-bit data, left-justified, I2S, etc., providing easy nterfacing to audio DSP and decoder devices. ampling rates up to 50 kHz are supported. A full set of ser-programmable functions are accessible through a -wire serial control port, which supports register write unctions.
