Features:

* 24-Bit Resolution
* Analog Performance (VCC = 5 V):
  −  Dynamic Range: 106 dB
  −  SNR: 106 dB, Typical
  −  THD+N: 0.002%, Typical
  −  Full-Scale Output: 4 V p-p, Typical
*4*/8* Oversampling Digital Filter:
  −  Stop-Band Attenuation: 50 dB
  −  Pass-Band Ripple: ±0.04 dB
* Sampling Frequency: 5 kHz to 200 kHz
* System Clock: 128 fS, 192 fS, 256 fS, 384 fS,
    512 fS, 768 fS, 1152 fS With Auto Detect
* Software Control (PCM1753, PCM1755):
  −  Accepts 16-, 18-, 20-, and 24-Bit Audio
      Formats: Standard, I2S, and Left-Justified
  −  Digital Attenuation: 0 dB to 63 dB,0.5 dB/Step
  −  Digital De-Emphasis
  −  Digital Filter Rolloff: Sharp or Slow
  −  Soft Mute
  −  Zero Flags for Each Output
  −  Open-Drain Output Zero Flag (PCM1755)
*Hardware Control (PCM1754):
  −  I2S and 16-Bit Word, Right-Justified
  −  44.1 kHz Digital De-Emphasis
  −  Soft Mute
  −  Zero Flag for L-, R-Channel Common Output
*Power Supply: 5-V Single Supply
*Small 16-Lead SSOP Package, Lead-Free


Application

*A/V Receivers
*DVD Movie Players
*DVD Add-On Cards For High-End PCs
*DVD Audio Players
*HDTV Receivers
*Car Audio Systems
*Other Applications Requiring 24-Bit Audio


Pinout

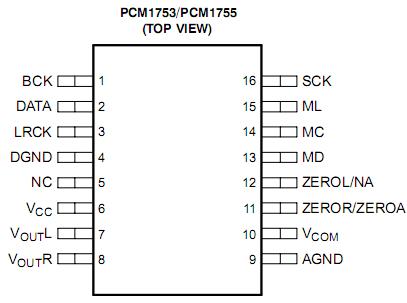

Connection Diagram


Specifications

  UNIT
Supply voltage:VCC 0.3 V to 6.5 V
Ground voltage differences: AGND, DGND ±0.1 V
Input voltage 0.3 V to 6.5 V
Input current (any pins except supplies) ±10 mA
Ambient temperature under bias 40 to 125
Storage temperature 55 to 150
Junction temperature 150
Lead temperature (soldering) 260, 5 s
Package temperature (IR reflow, peak) 260



Description

    The PCM1755 is a CMOS, monolithic, integrated circuit, which includes stereo digital-to-analog converters and support circuitry in a small 16-lead SSOP package.The data converters PCM1755 use TI's enhanced multilevel delta-sigma architecture, which employs 4th-order noise shaping and 8-level amplitude quantization to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1755 accepts industry standard audio data formats with 16- to 24-bit data,providing easy interfacing to audio DSP and decoder chips. Sampling rates up to 200 kHz are supported. A full set of user-programmable functions is accessible through a three-wire serial control port, which supports register write functions.

    The PCM1755 is pin compatible with the PCM1748,PCM1742, and PCM1741, except for pin 5.
