PCM1754

Features: *24-Bit Resolution*Analog Performance (VCC = 5 V): − Dynamic Range: 106 dB − SNR: 106 dB, Typical − THD+N: 0.002%, Typical − Full-Scale Output: 4 V p-p, Typical*4*/8* Oversampling Digital Filter: − Stop-Band Attenuation: 50 dB − Pass-Band Ripple: ±0.04...

product image

PCM1754 Picture
See larger image
SeekIC No. : 004456724 Detail

PCM1754: Features: *24-Bit Resolution*Analog Performance (VCC = 5 V): − Dynamic Range: 106 dB − SNR: 106 dB, Typical − THD+N: 0.002%, Typical − Full-Scale Output: 4 V p-p, Typical*4*/...

PCM1754 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCM1754
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 24-Bit Resolution
* Analog Performance (VCC = 5 V):
  −  Dynamic Range: 106 dB
  −  SNR: 106 dB, Typical
  −  THD+N: 0.002%, Typical
  −  Full-Scale Output: 4 V p-p, Typical
*4*/8* Oversampling Digital Filter:
  −  Stop-Band Attenuation: 50 dB
  −  Pass-Band Ripple: ±0.04 dB
* Sampling Frequency: 5 kHz to 200 kHz
* System Clock: 128 fS, 192 fS, 256 fS, 384 fS,
    512 fS, 768 fS, 1152 fS With Auto Detect
* Software Control (PCM1753, PCM1755):
  −  Accepts 16-, 18-, 20-, and 24-Bit Audio
      Formats: Standard, I2S, and Left-Justified
  −  Digital Attenuation: 0 dB to 63 dB,0.5 dB/Step
  −  Digital De-Emphasis
  −  Digital Filter Rolloff: Sharp or Slow
  −  Soft Mute
  −  Zero Flags for Each Output
  −  Open-Drain Output Zero Flag (PCM1755)
*Hardware Control (PCM1754):
  −  I2S and 16-Bit Word, Right-Justified
  −  44.1 kHz Digital De-Emphasis
  −  Soft Mute
  −  Zero Flag for L-, R-Channel Common Output
*Power Supply: 5-V Single Supply
*Small 16-Lead SSOP Package, Lead-Free


Application

*A/V Receivers
*DVD Movie Players
*DVD Add-On Cards For High-End PCs
*DVD Audio Players
*HDTV Receivers
*Car Audio Systems
*Other Applications Requiring 24-Bit Audio


Pinout

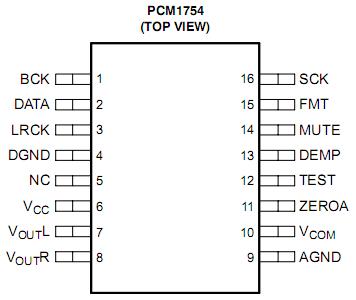

Connection Diagram




Specifications

  UNIT
Supply voltage:VCC 0.3 V to 6.5 V
Ground voltage differences: AGND, DGND ±0.1 V
Input voltage 0.3 V to 6.5 V
Input current (any pins except supplies) ±10 mA
Ambient temperature under bias 40 to 125
Storage temperature 55 to 150
Junction temperature 150
Lead temperature (soldering) 260, 5 s
Package temperature (IR reflow, peak) 260



Description

    The PCM1754 is a CMOS, monolithic, integrated circuit, which includes stereo digital-to-analog converters and support circuitry in a small 16-lead SSOP package.The data converters use TI's enhanced multilevel delta-sigma architecture, which employs 4th-order noise shaping and 8-level amplitude quantization to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1754 accepts industry standard audio data formats with 16- to 24-bit data,providing easy interfacing to audio DSP and decoder chips. Sampling rates up to 200 kHz are supported. A full set of user-programmable functions is accessible through a three-wire serial control port, which supports register write functions.

    The PCM1753/55 is pin compatible with the PCM1748,PCM1742, and PCM1741, except for pin 5.
