PCM1748_1238629

` 24-BIT RESOLUTION
` ANALOG PERFORMANCE (VCC = +5V):
Dynamic Range: 106dB typ (PCM1748KE)
100dB typ (PCM1748E)
SNR: 106dB typ (PCM1748KE)
100dB typ (PCM1748E)
THD+N: 0.002% typ (PCM1748KE)
0.003% typ (PCM1748E)
Full-Scale Output: 3.1Vp-p typ
` 8x OVERSAMPLING DIGITAL FILTER:
Stopband Attenuation: 55dB
Passband Ripple: ±0.03dB
` SAMPLING FREQUENCY: 5kHz to 100kHz
` SYSTEM CLOCK: 256, 384, 512, 768fS with uto Detect
` ACCEPTS 16-, 18-, 20-, AND 24-BIT AUDIO ATAzx
` DATA FORMATS: Standard, I2S, and eft-Justified
` USER-PROGRAMMABLE MODE CONTROLS: igital Attenuation: 0dB to 63dB, 0.5dB/Step igital De-Emphasis igital Filter Roll-Off: Sharp or Slow oft Mute  ero Flags for Each Output
`
DUAL-SUPPLY OPERATION: 5V Analog, +3.3V Digital
`
5V TOLERANT DIGITAL INPUTS

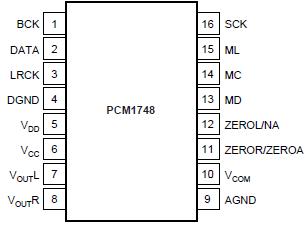

` SMALL SSOP-16 PACKAGE
` SAME PACKAGE SIZE AS SOP-8

The PCM1748_1238629 is a CMOS, monolithic, integrated circuit which ncludes stereo Digital-to-Analog Converters (DACs) and support ircuitry in a small SSOP-16 package. The data converters PCM1748_1238629 utilize exas Instrument's enhanced multilevel delta-sigma architecture hat employs fourth-order noise shaping and 8-level amplitude uantization to achieve excellent dynamic performance and improved olerance to clock jitter. The PCM1748_1238629 accepts industry tandard audio data formats with 16- to 24-bit data, providing easy nterfacing to audio DSP and decoder chips. Sampling rates up to 00kHz are supported. A full set of user-programmable functions re accessible through a 3-wire serial control port that supports egister write functi
