Features:

24-BIT RESOLUTION
ANALOG PERFORMANCE (VCC = +5V):
Dynamic Range: 117dB typ
SNR: 117dB typ
THD+N: 0.0004% typ
Full-Scale Output: 2.2Vrms (at post amp)
DIFFERENTIAL CURRENT OUTPUT:  2.48mA
SAMPLING FREQUENCY: 10kHz to 200kHz
SYSTEM CLOCK: 128, 192, 256, 384, 512,or 768fS with Auto Detect
ACCEPTS 16-, 20-, AND 24-BIT AUDIO DATA
DATA FORMATS: Standard, I2S, and Left-Justified8x OVERSAMPLING DIGITAL FILTER:
Stopband Attenuation: 82dB
Passband Ripple:   0.002dB
OPTIONAL INTERFACE TO EXTERNAL
DIGITAL FILTER AVAILABLE
OPTIONAL INTERFACE TO DSD DE-
CODER FOR SACD PLAYBACK
USER-PROGRAMMABLE MODE CONTROLS:
Digital Attenuation: 0dB to 120dB, 0.5dB/Step
Digital De-Emphasis
Digital Filter Roll-Off: Sharp or Slow
Soft Mute
Zero Detect Mute
Zero Flags for Each Output
DUAL-SUPPLY OPERATION:+5V Analog, +3.3V Digital5V TOLERANT DIGITAL INPUTS
SMALL SSOP-28 PACKAGE


Application

  AV RECEIVERS
  DVD MOVIE PLAYERS
  SACD PLAYERS
  HDTV RECEIVERS
  CAR AUDIO SYSTEMS
  DIGITAL MULTI-TRACK RECORDERS
  OTHER MULTICHANNEL AUDIO SYSTEMS


Pinout

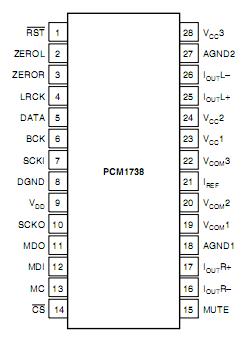

Connection Diagram


Specifications

Power Supply Voltage, VCC1, VCC2, and VCC3 .............................................. +6.5V
VDD ............................................................................................................... +4.0V
Supply Voltage Differences Among VCC1, VCC2, and VCC3 .............................  0.1V
Ground Voltage Differences Among AGND1, AGND2,
and AGND3 ................................................................................................... . 0.1V
Digital Input Voltage, LRCK, DATA, BCK, SCKI, MDI,
MC, and MUTE ................................................................................. 0.3V to 6.5V
Digital Input Voltage, ZEROL, ZEROR, SCKO,
and MDO ............................................................................. 3.0V to (VDD + 0.3V)
Analog Input Voltage, IOUTR, IOUTR+, VCOM1,
VCOM2, VCOM3, IREF, IOUTL+, and IOUTL .............. 0.3V to (VCC, VCC2 + 0.3V)
Input Current (except power supply) ............................................................  10mA
Ambient Temperature Under Bias ................................................ 40 to +125
Storage Temperature .................................................................... 55 to +150
Junction Temperature .................................................................................. +150C


Description

The PCM1738 is a CMOS, monolithic, Integrated Cir-cuit (IC) that includes stereo Digital-to-Analog Convert-ers (DACs) and support circuitry in a small SSOP-28package. The data converters PCM1738 utilize a newly developedadvanced segment DAC architecture to achieve excel-lent dynamic performance and improved tolerance toclock jitter. The PCM1738 provides balanced currentoutputs, allowing the user to optimize analog perfor-mance externally, and accepts industry standard audiodata formats with 16- to 24-bit data, providing easyinterfacing to audio DSP and decoder chips. Samplingrates up to 200kHz are supported.

The PCM1738 alsohas two optional modes of operation: an external digital-filter mode (for use with  the  DF1704, DF1706,  andPMD200), and a DSDdecoder interface for SACDplayback applications. A full set of user-programmablefunctions are accessible through a 4-wire serial controlport  that supports register write and read functions.
