PCM16C010

· PC Card bus interface
· PC Card Standard configuration registers

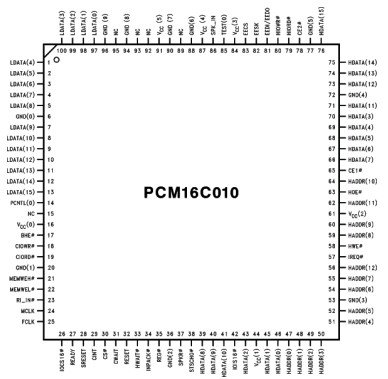

· 100 pin TQFP package
· Configurable as NAND Flash (NM29N16) interface
· Serial EEPROM Interface compatible with MICROWIRE^TM EEPROM protocol
· 1-kbyte on chip RAM for attribute memory which shad-ows the CIS and is used for loading static registers
· Address decoding and control for IO functions
· Power management and clock control
· Common memory logic for common memory devices in-cluding NOR Flash devices
· Operating voltage range V_CC(opr) 3V 50V

If MilitaryAerospace specified devices are required please contact the National Semiconductor Sales OfficeDistributors for availability and specifications

Note 1 Absolute maximum ratings are values beyond which the device may be damaged or have its useful life impaired The databook specifications should be met without exception to ensure that the system design is reli-able over its power supply temperature and outputinput loading variables National does not recommend operation outside these specifications

National's PCM16C010 acts as a standard interface be-tween the PC Card Host busandlocalcardbussesfoundon IO and memory PC Cards This device allows the card de-signer to focus on the design of the IO functions while providing a one-chip solution for IO memory window con-trol EEPROM interfacing and power management The PCM16C010 provides a PC Card interface for any ISA like function which allows it to be placed on a PC Card In addition the PCM16C010 provides the capability to con-figure the function as a NAND Flash (NM29N16) interface supporting all of the necessary control signals required to handshake with NAND Flash (NM29N16) memory devices The PCM16C010 is fully compliant with the PC Card Stan-dard This IC allows the system software to setup an IO decode window and provides the Attribute memory decode control that allow attribute read and write data transfers Note PC Card refers to technology developed to the PC Card Standards determined by the PCMCIA Standards Committee
