PCI950

Features: · 5-V Core Logic With PCI Interface· Supports PCI Clock Frequencies up to 33 MHz· Accepts IRQSER Serial Interrupt Stream Input From TI PC Card Controllers· Provides System Access to All 15 ISA-Style IRQs and 4 PCI-Style Interrupts· Offered in 48-Pin TQFP PackagePinoutSpecificatio...

product image

PCI950 Picture
See larger image
SeekIC No. : 004456627 Detail

PCI950: Features: · 5-V Core Logic With PCI Interface· Supports PCI Clock Frequencies up to 33 MHz· Accepts IRQSER Serial Interrupt Stream Input From TI PC Card Controllers· Provides System Access t...

PCI950 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCI950
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 5-V Core Logic With PCI Interface
· Supports PCI Clock Frequencies up to 33 MHz
· Accepts IRQSER Serial Interrupt Stream Input From TI PC Card Controllers
· Provides System Access to All 15 ISA-Style IRQs and 4 PCI-Style Interrupts
· Offered in 48-Pin TQFP Package


Pinout

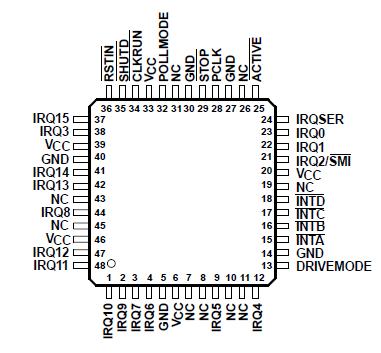

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to 6 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . .       0.5 V to VCC + 0.5 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC) (see Note 13) . . . . . .   ±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) (see Note 14) . . . . ±20 mA
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . .  65°C to 150°C
Virtual junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150°C


Description

The PCI950 is an IRQSER interrupt deserializer that interfaces with existing and future TI PC Card controllers. The PCI950 accepts the IRQSER output of a TI PC Card controller and converts it to 16 ISA-style interrupts and 4 PCI-style interrupts. Interfacing the PC Card controller with the PCI950 permits system access of all available interrupts and features of the PC Card controller.
