Product Details

Description



Pinout

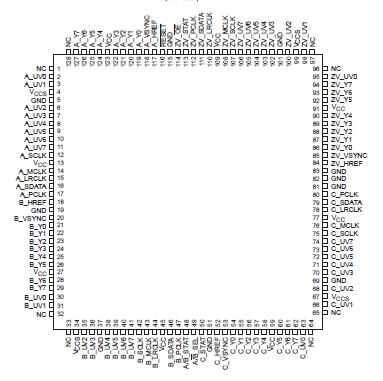

Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 6 V
Supply voltage range, VCCS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 6 V
Input voltage range, VI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  0.5 V to 6.5 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Input Clamp Current, IIK (VI < 0 or VI > VCC) (see Note 3) . . . . . . . .  ±20 mA
Output Clamp Current, IOK (VO < 0 or VO > VCC) (see Note 4) . . . . .  ±20 mA
Storage temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Virtual junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150°C


Description

The 3-to-1 ZV switch PCI930 is a companion chip to the PCI1220/1221 PC Card controllers; however, it can be used in other applications where multiple ZV sources require external buffering. The ZV switch PCI930 is a 3:1 multiplexer for the 23 pins defined in the PCMCIA zoomed video interface. The ZV interface of PCI930 includes both the video and audio data as defined by the Zoomed Video Specification.

The three ZV source interfaces of PCI930 are referred to as A, B, and C. ZV sources A and B are intended for use with the PCI1220/1221 PC Card zoom video outputs. The third source, C, may be from a variety of external ZV sources.

An advanced CMOS process is used to achieve low system-power consumption.
