Product Details

Description



Features:

• Ability to wake from D3hot and D3cold
• Fully compatible with the Intel 430TX (Mobile Triton II) chipset
• A 208-pin low-profile QFP (PDV) or 209-ball MicroStar BGA ball grid array (GHK) package
• 3.3-V core logic with universal PCI interfaces compatible with 3.3-V and 5-V PCI signaling environments
• Mix-and-match 5-V/3.3-V 16-bit PC Cards and 3.3-V CardBus Cards
• Single PC Card or CardBus slot with hot insertion and removal
• Burst transfers to maximize data throughput on the PCI bus and the CardBus bus
• Parallel PCI interrupts, parallel ISA IRQ and parallel PCI interrupts, serial ISA IRQ with parallel PCI interrupts, and serial ISA IRQ and PCI interrupts
• Serial EEPROM interface for loading subsystem ID and subsystem vendor ID
• Pipelined architecture allows greater than 130 Mbit/s sustained throughput from CardBus-to-PCI and from PCI-to-CardBus
• Interface to parallel single-slot PC Card power-switch interfaces like the TI TPS2211 device
• Up to five general-purpose I/Os
• Programmable output select for CLKRUN
• Five PCI memory windows and two I/O windows available to the 16-bit PC Card socket
• Two I/O windows and two memory windows available to the CardBus socket
• Exchangeable Card Architecture (ExCA) compatible registers are mapped in memory and I/O space
• Compatibility with Intel 82365SL-DF and 82365SL registers
• Distributed DMA (DDMA) and PC/PCI DMA
• 16-bit DMA on the PC Card socket
• Ring indicate, SUSPEND, PCI CLKRUN, and CardBus CLKRUN
• Socket-activity LED pins
• PCI bus lock (LOCK)
• Advanced submicron, low-power CMOS technology
• Internal ring oscillator
• OHCI link function designed to IEEE 1394 Open Host Controller Interface (OHCI) Specification
• Implements PCI burst transfers and deep FIFOs to tolerate large host latency
• Supports physical write posting of up to three outstanding transactions
• OHCI link function is compliant with IEEE 1394-1995 and compatible with IEEE 1394a-2000
• Supports serial bus data rates of 100, 200, and 400 Mbits/s
• Provides bus-hold buffers on the PHY-Link I/F for low-cost single-capacitor isolation



Application

• Card insertion/removal and recognition
• P2C power-switch interface
• Zoomed-video support
• Speaker and audio applications
• LED socket activity indicators
• PC Card-16 DMA support
• PC Card controller programming model
• CardBus socket registers



Pinout

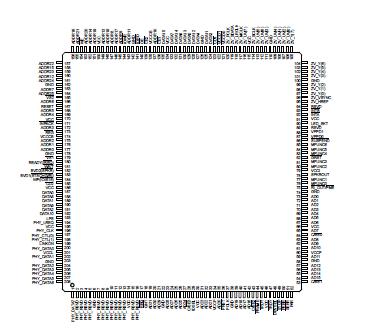

  Connection Diagram


Specifications

Supply voltage range, VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to 4.6 V
Clamping voltage range, VCCCB, VCCI, VCCL VCCP, . . . . . . . . . 0.5 V to 6 V
Input voltage range, VI: PCI . . . . . . . . . . . . . . . . . . . . 0.5 V to VCCP + 0.5 V
Card A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCCA + 0.5 V
ZV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
TTL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Fail safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Miscellaneous and PHY I/F . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Output voltage range, VO: PCI . . . . . . . . . . . . . . . . . . . .0.5 V to VCC + 0.5 V
Card A . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCCA + 0.5 V
ZV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
TTL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Fail safe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Miscellaneous and PHY I/F . . . . . . . . . . . . . . . . . . . . . . . 0.5 V to VCC + 0.5 V
Input clamp current, IIK (VI < 0 or VI > VCC) (see Note 1) . . . . . . . . . .±20 mA
Output clamp current, IOK (VO < 0 or VO > VCC) (see Note 2) . . . . . . .±20 mA
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . 65°C to 150°C
Virtual junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .150°C



Description

The PCI4410A device is a dual-function PCI device compliant with the PCI Local Bus Specification. Function 0 provides the independent PC Card socket controller compliant with the PC Card Standard. The PCI4410A device provides features that make it the best choice for bridging between the PCI bus and PC Cards, and supports either 16-bit or CardBus PC Cards in the socket, powered at 5 V or 3.3 V, as required.

All card signals are buffered internally to allow hot insertion and removal without external buffering. The PCI4410A device is compatible with the register of the Intel 82365SLDF and 82365SL ExCA controllers. The PCI4410A internal data-path logic allows the host to access 8-, 16-, and 32-bit cards using full 32-bit PCI cycles for maximum performance. Independent buffering and a pipeline architecture provide an unsurpassed performance level with sustained bursting. The PCI4410A device can be programmed to accept posted writes to improve bus utilization. Function 1 of the PCI4410A device is compatible with IEEE 1394a-2000 and the latest 1394 open host controller interface (OHCI) specifications. The chip provides the IEEE 1394 link function and is compatible with data rates of 100, 200, and 400 Mbits/s. Deep FIFOs are provided to buffer 1394 data and accommodate large host bus latencies.

The PCI4410A device provides physical write posting and a highly tuned physical data path for SBP-2 performance. Multiple-cache line burst transfers, advanced internal arbitration, and bus-holding buffers on the PHY/Link interface are other features that make the PCI4410A device the best-in-class 1394 OHCI solution. The PCI4410A device provides an internally buffered zoomed-video (ZV) path. This reduces the design effort of PC board manufacturers to add a ZV-compatible solution and ensures compliance with the CardBus loading specifications.

Various implementation-specific functions and general-purpose inputs and outputs are provided through eight multifunction terminals. These terminals present a system with options in PC/PCI DMA, PCI LOCK and parallel interrupts, PC Card activity indicator LEDs, and other platform-specific signals. ACPI-compliant general-purpose events can be programmed and controlled through the multifunction terminals, and an ACPI-compliant programming interface is included for the general-purpose inputs and outputs.

The PCI4410A device is compliant with the latest PCI Bus Power Management Specification, and provides several low-power modes that enable the host power system to further reduce power consumption. The PC Card (CardBus) Controller and IEEE 1394 Host Controller Device Class Specifications required for Microsoft OnNowMT power management are supported. Furthermore, an advanced complementary metal-oxide semiconductor (CMOS) process achieves low system power consumption.
