PCF2113x

Features:

` Single-chip LCD controller/driver
` 2-line display of up to 12 characters + 120 icons, or 1-line display of up to 24 characters + 120 icons
` 5 ´ 7 character format plus cursor; 5 ´ 8 for kana(Japanese) and user defined symbols
` Icon mode: reduced current consumption while displaying
` Icon blink function
` On-chip: Configurable 4, 3 or 2 voltage multiplier generating LCD supply voltage, independent of VDD, programmable by instruction (external supply also possible) Temperature  compensation of on-chip generated VLCD: -0.16 to -0.24 %/K (programmable by instruction) Generation of intermediate LCD bias voltages Oscillator requires no external components(external clock also possible).
` Display data RAM: 80 characters
` Character generator ROM: 240, 5 ´ 8 characters
` Character generator RAM: 16, 5 ´ 8 characters;3 characters used to drive 120 icons, 6 characters used if icon blink feature is used in application
` 4 or 8-bit parallel bus and 2-wire I2C-bus interface
` CMOS compatible
` 18 row and 60 column outputs
` Multiplex rates 1 : 18 (for normal operation), 1 : 9 (for single line operation) and 1 : 2 (for icon only mode)
` Uses common 11 code instruction set (extended)
` Logic supply voltage range VDD1 - VSS1 = 1.8 to 5.5 V(chip may be driven with two battery cells)
` VLCD generator supply voltage range VDD2 - VSS2 = 2.2 to 4.0 V
` Display supply voltage range VLCD - VSS2 = 2.2 to 6.5 V
` Direct mode to save current consumption for icon mode and Mux 1 : 9 (depending on VDD2 value and LCD liquid properties)
` Very low current consumption (20 to 200 mA): Icon mode: <25 mA Power-down mode: <2 mA.


Application

· Telecom equipment
· Portable instruments
· Point-of-sale terminals

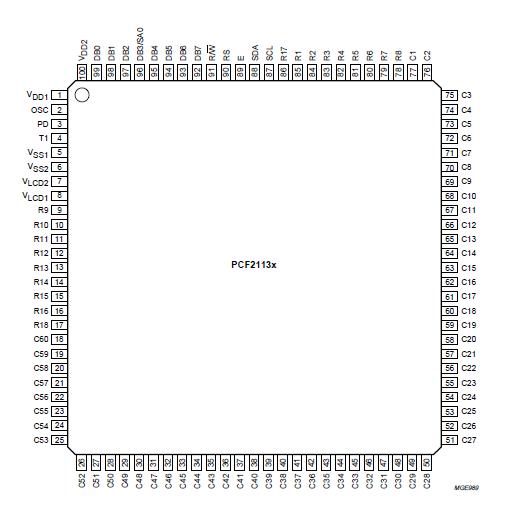

Pinout




Description

The PCF2113x is a low power CMOS LCD controller and driver, designed to drive a dot matrix LCD display of 2-line by 12 or 1-line by 24 characters with 5 ´ 8 dot format. All necessary functions for the display are provided in a single chip, including on-chip generation of LCD bias voltages, resulting in a minimum of external components and lower system current consumption. The PCF2113x interfaces to most microcontrollers via a 4 or 8-bit bus or via the 2-wire I2C-bus. The chip contains a character generator and displays alphanumeric and kana
(Japanese) characters. The letter 'x' in PCF2113x characterizes the built-in character set. Various character sets can be manufactured on request.
