PCF2104x

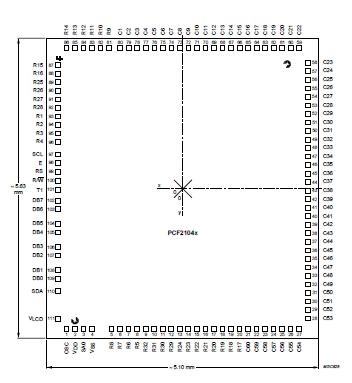

The PCF2104x integrated circuit is similar to the PCF2114x (described in the "PCF2116 family" data sheet) but does not contain the high voltage generator of that device.

The PCF2104x is optimized for chip-on-glass applications. The 'x' in 'PCF2104x' represents a specific letter code for a character set in the character generator ROM (CGROM). Two standard character sets are currently available, specified by the letters 'C' and 'L' (see Figs 5 and 6). Other character sets are available on request.

The PCF2104x is a low-power CMOS LCD controller and driver, designed to drive a split screen dot matrix LCD display of 1 or 2 lines by 24 characters or 2 or 4 lines by 12 characters with a 5 ´ 8 dot format. All necessary functions for the display of PCF2104x are provided in a single chip, including on-chip generation of LCD bias voltages which results in a minimum of external components and lower system power consumption. To allow partial VDD shutdown the ESD protection system of the SCL and SDA pins does not use a diode connected to VDD.

The chip contains a character generator and displays alphanumeric and kana characters. The PCF2104x interfaces to most microcontrollers via a 4 or 8-bit bus, or via the 2-wire I2C-bus.
