PCF2103

Features: ` Single-chip LCD controller/driver` 2-line display of up to 12 characters + 120 icons, or 1-line display of up to 24 characters + 120 icons` 5 ´ 7 character format plus cursor; 5 ´ 8 for kana (Japanese syllabary) and user defined symbols` Icon mode: reduced current consumpti...

product image

PCF2103 Picture
See larger image
SeekIC No. : 004456406 Detail

PCF2103: Features: ` Single-chip LCD controller/driver` 2-line display of up to 12 characters + 120 icons, or 1-line display of up to 24 characters + 120 icons` 5 ´ 7 character format plus cursor; 5 &a...

PCF2103 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCF2103
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Single-chip LCD controller/driver
` 2-line display of up to 12 characters + 120 icons, or 1-line display of up to 24 characters + 120 icons
` 5 ´ 7 character format plus cursor; 5 ´ 8 for kana (Japanese syllabary) and user defined symbols
` Icon mode: reduced current consumption while displaying icons only(1)
` Icon blink function
` On-chip:
Generation of intermediate LCD bias voltages
Oscillator requires no external components (external clock also possible)
` Display data RAM: 80 characters
` Character generator ROM: 240, 5 ´ 8 characters
` Character generator RAM: 16, 5 ´ 8 characters; 3 characters used to drive 120 icons, 6 characters used if icon blink feature is used in application
` 4 or 8-bit parallel bus and 2-wire I2C-bus interface
` CMOS compatible
` 18 row, 60 column outputs
` Mux rates 1 : 18 (for normal operation) and 1 : 2 (for icon-only mode)
` Uses common 11 code instruction set (extended)
` Logic supply voltage range, VDD - VSS = 1.8 to 5.5 V; chip may be driven with two battery cells
` Display supply voltage range, VLCD - VSS = 2.2 to 6.5 V
` Very low current consumption (20 to 120 mA):
Icon mode: <25 mA
Power-down mode: <2.5 mA.


Application

· Telecom equipment
· Portable instruments
· Point-of-sale terminals.


Pinout

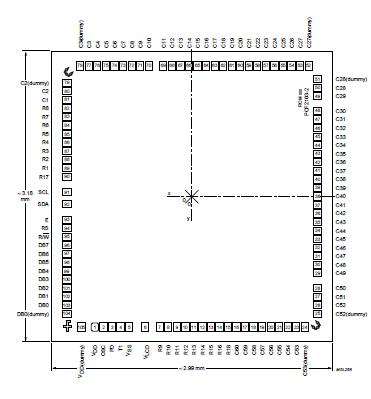

Connection Diagram


Description

The PCF2103 family is a low power CMOS LCD controller and driver, designed to drive a dot matrix LCD display of 2 line by 12 or 1 line by 24 characters with 5 ´ 8 dot format. All necessary functions of PCF2103 for the display are provided in a single chip, including on-chip generation of LCD bias voltages, resulting in a minimum of external components and lower system current consumption. The PCF2103 interfaces to most microcontrollers via a 4 or 8-bit bus or via the 2-wire I2C-bus. The chip contains a character generator and displays alphanumeric and kana (Japanese) characters. The letter 'X' in PCF2103X characterizes the built-in character set. Various character sets can be manufactured on request.
