Product Details

Description

Features:

· Internal voltage regulator is electrically programmable for various LCD voltages
· Time calibration is electrically programmable (no trimming capacitor required)
· LCD voltage adjusts with temperature for good contrast
· 4.19 MHz oscillator
· 12-hour or 24-hour mode
· Operating ambient temperature: -40 to +85 °C
· 28-lead plastic SMD (SO28)
· 1 Hz set mode.

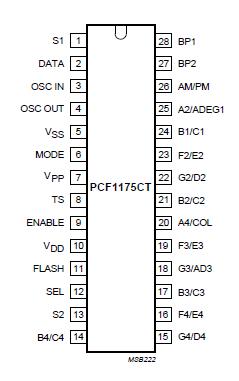

Pinout

Connection Diagram

Description

The PCF1175C is a single chip, 4.19 MHz CMOS car clock circuit providing hours, minutes and seconds functions. It is designed to drive a 4-digit duplex liquid crystal display (LCD).

Two external single-pole, single-throw switches will accomplish all time setting functions of PCF1175C. Time calibration and voltage regulator are electrically programmable via an on-chip EEPROM. The circuit is battery-operated via an internal voltage regulator and an external resistor.
