PCF1174C

Features: · Internal voltage regulator is electrically programmable for various LCD voltages· Time calibration is electrically programmable (no trimming capacitor required)· LCD voltage adjusts with temperature for good contrast· 4.19 MHz oscillator· 12-hour or 24-hour mode· Operating ambient temp...

product image

PCF1174C Picture
See larger image
SeekIC No. : 004456398 Detail

PCF1174C: Features: · Internal voltage regulator is electrically programmable for various LCD voltages· Time calibration is electrically programmable (no trimming capacitor required)· LCD voltage adjusts with...

PCF1174C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCF1174C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Internal voltage regulator is electrically programmable for various LCD voltages
· Time calibration is electrically programmable (no trimming capacitor required)
· LCD voltage adjusts with temperature for good contrast
· 4.19 MHz oscillator
· 12-hour or 24-hour mode
· Operating ambient temperature: -40 to +85 °C
· 40-lead plastic SMD, face down (VSO40).

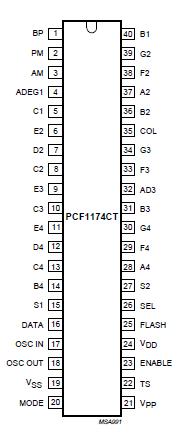

Pinout

Connection Diagram


Description

The PCF1174C is a single chip, 4.19 MHz CMOS car clock circuit providing hours, minutes and seconds functions. It is designed to drive a 4-digit static liquid crystal display (LCD).

Two external single-pole, single-throw switches of PCF1172C will accomplish all time setting functions. Time calibration and voltage regulator are electrically programmable via an on-chip EEPROM. The circuit is battery-operated via an internal voltage regulator and an external resistor.
