PCD509ZUU

Features: ` The PCD50912 is designed for GAP compatible DECT handsets` The PCD50922 is designed for GAP compatible DECT base stations serving up to six handsets` Fully static 80C51 microcontroller` Emulation supported for 80C51 program development` Four 8-bit ports (P0, P1, P2 and P3), 32 I/O line...

product image

PCD509ZUU Picture
See larger image
SeekIC No. : 004456386 Detail

PCD509ZUU: Features: ` The PCD50912 is designed for GAP compatible DECT handsets` The PCD50922 is designed for GAP compatible DECT base stations serving up to six handsets` Fully static 80C51 microcontroller` ...

PCD509ZUU Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCD509ZUU
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` The PCD50912 is designed for GAP compatible DECT handsets
` The PCD50922 is designed for GAP compatible DECT base stations serving up to six handsets
` Fully static 80C51 microcontroller
` Emulation supported for 80C51 program development
` Four 8-bit ports (P0, P1, P2 and P3), 32 I/O lines
` Dedicated port pins for keyboard, I2C-bus, interrupt sources and/or external memory
` Fifteen interrupt sources (including those from TICB, BML and DSP) with two priority levels
` I2C-bus interface
` UART with IrDA-compatible Data Transmission Mode
` 256 bytes of microcontroller main RAM
` 3 kbytes of microcontroller AUX RAM
` 1 kbyte of shared System Data RAM
` 64 kbytes of mask programmable ROM
` 128 kbyte address space for external ROM access, maximum 192 kbytes together with internal ROM
` 128 kbytes of external RAM addressable
` Embedded DSP with 6.912, 13.824 or 27.648 Mips
` Speech and IOM-2 interface
` BML for TDMA frame (de)multiplexing. Transmission or reception can be programmed for any slot
` Ciphering, scrambling, CRC checking/generation, protected B-fields
` Local call and B-field loop-back
` Automatic receiver delay adjustment programmable per slot to correct for terminal mobility
` Phase error measurement and phase error correction by hardware
` Serial interface to synthesizer for frequency programming
` Programmable timing and polarity of radio-control signals
` Easy interfacing with radio circuits, operating at different supply voltages
` GMSK pulse shaper with two different pulse shapes (BT = 0.5 and BT = 0.8)
` Comparator for use as bit-slicer
` 3 channel time-multiplexed 8-bit ADC for RSSI, battery and general input voltage measurement
` Battery management supported by programmable current source for temperature or charge current measurement
` On-chip 8-bit DAC for various purposes
` Low power crystal oscillator at 13.824 MHz
` Programmable on-chip capacitors for frequency adjustment to 13.824 MHz with large pulling range
` High performance DAC and ADC for dynamic earpiece and dynamic or electret microphone
` Analog-to-digital path switchable sensitivity for microphone or line interface input
` On-chip reference voltage and supply for electret microphone
` Very low ohmic buzzer output
` Pulse density modulated or pulse width modulated buzzer output signal
` Power-on-reset
` Low power operation optimized for 2 battery cells in handset
` Long standby time due to reduced digital supply voltage and reduced activity in idle-locked mode
` Flexible supply voltage concept due to use of level shifters between each supply voltage domain
` Eight independent supply voltage domains:
1.8 to 3.6 V for digital core, microcontroller ports P0 and P2, and also P1 and P3
1.8 to 3.6 V for buzzer, oscillator and battery
2.7 to 3.6 V for RF interface and analog circuits
` CMOS technology
` Small and flat LQFP80 package.


Pinout

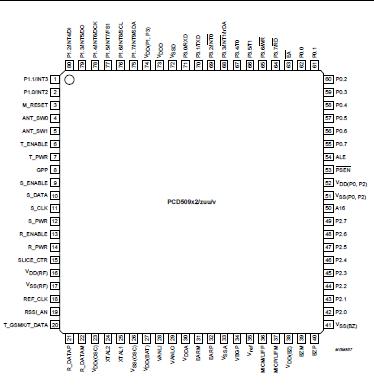

Connection Diagram
