PCD5091

Features: · 80C51 ports P0, P1, P2 and P3 available for interfacing o display, keyboard, I2C-bus, interrupt sources and/or xternal memory. Integrated 64 kbyte ROM, 3 kbytes of ata memory and 1 kbyte SDR-RAM. External program emory is addressable up to 128 kbytes· +2.7 to +5 V port (P0 to P3) inter...

product image

PCD5091 Picture
See larger image
SeekIC No. : 004456378 Detail

PCD5091: Features: · 80C51 ports P0, P1, P2 and P3 available for interfacing o display, keyboard, I2C-bus, interrupt sources and/or xternal memory. Integrated 64 kbyte ROM, 3 kbytes of ata memory and 1 kbyte...

PCD5091 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCD5091
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 80C51 ports P0, P1, P2 and P3 available for interfacing o display, keyboard, I2C-bus, interrupt sources and/or xternal memory. Integrated 64 kbyte ROM, 3 kbytes of ata memory and 1 kbyte SDR-RAM. External program emory is addressable up to 128 kbytes
· +2.7 to +5 V port (P0 to P3) interface
· TDMA frame (de)multiplexing. Transmission or eception can be programmed for any slot
· Ciphering, scrambling, CRC checking/generation and rotected B-fields
· Speech and data buffering space for six handsets
· Local call and B-field loop-back
· Two interrupt lines for BML and DSP to interrupt 80C51
· On-chip, three-channel time-multiplexed 8-bit nalog-to-Digital Converter (ADC) for RSSI easurement, one for battery voltage measurement nd one channel available for other purposes
· On-chip 8-bit Digital-to-Analog Converter (DAC) for lectronic potentiometer function
· Phase error measurement and phase error correction by ardware
· DACs and ADCs for dynamic earpiece and dynamic or lectret microphone
· On-chip reference voltage
· On-chip supply for electret microphone
· Very low ohmic buzzer output
· Serial interface to external ADPCM CODEC (PCD5032) r 8 kHz u-law samples
· Speech switch for Digital Telephone Answering Machine (DTAM) connected to SPI interface
· IOM-2 interface (Siemens registered trademark)
· Serial interface to synthesizer for frequency programming
· Programmable polarity and timing of radio-control signals
· GMSK pulse shaper
· Easy interfacing with radio circuits, operating at other supply voltage (RF supply pin with level shifter for RF signals)
· On-chip comparator for use as data-slicer
· Low power oscillator with integrated frequency adjustment
· QFP100 and LQFP100 packages
· Power-on-reset
· Programmable power-down modes
· Low supply voltage (2.7 to 3.6 V)
· CMOS technology


Pinout

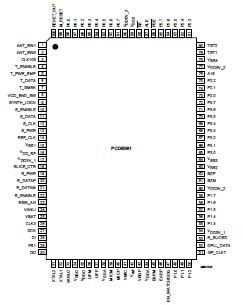

Connection Diagram


Description

The PCD5091 is designed for GAP-compliant handsets ith speaker-phone option. PCD5091 has an embedded 80C51 icrocontroller with twice the performance of the classic rchitecture, 64 kbytes of PROM program memory and kbytes of data memory on-chip. In addition there is kbyte of on-chip data memory that is shared with on-chip urst Mode Logic (BML) and DSP, the System Data RAM SDR).
