Product Details

Description

Features:

` G.721 compliant ADPCM encoding and decoding
` 'Bitstream' analog-to-digital and digital-to-analog conversion
` On-chip receive and transmit filter
` On-chip ringer and tone generator
` Programmable gain of receive and transmit path
` Serial ADPCM interface with independent timing for maximum flexibility
` Linear PCM data accessible for digital echo cancelling
` Programmable via I2C-bus interface
` Fast receiver mute input via pin
` On-chip reference voltage
` On-chip symmetrical supply for electret microphone
` Few external components
` Low power consumption in standby mode
` Low supply voltage (single supply 2.7 V up to 5.5 V)
` CMOS technology
` Minimized EMC on digital outputs.

Application

· Digital Enhanced Cordless Telephony (DECT)
· CT2 cordless
· Speech compression.

Pinout

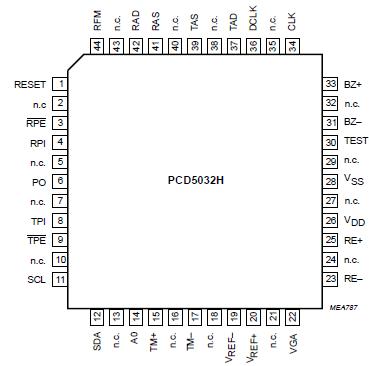

Connection Diagram

Description

The PCD5032 is a CMOS device designed for use in Digital Enhanced Cordless Telephone systems (DECT), but also suitable for other cordless telephony applications such as CT2. The PCD5032 performs analog-to-digital and digital-to-analog conversion, ADPCM encoding and decoding compliant to CCITT recommendation "G.721 (blue book, 1988)". The PCD5032 contains on-chip microphone and earpiece amplifiers. The device can be used in both handset and base station designs.
