PCD5013

Features: · FLEXä paging protocol decoder· 16 programmable user address words· 16 fixed temporary addresses· 16 operator messaging addresses· 1600, 3200 and 6400 bits/s decoding· Any-phase or single-phase decoding· Uses standard Serial Peripheral Interface (SPI) in slave mode· SSID and NID ro...

product image

PCD5013 Picture
See larger image
SeekIC No. : 004456372 Detail

PCD5013: Features: · FLEXä paging protocol decoder· 16 programmable user address words· 16 fixed temporary addresses· 16 operator messaging addresses· 1600, 3200 and 6400 bits/s decoding· Any-phase or s...

PCD5013 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCD5013
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· FLEXä paging protocol decoder
· 16 programmable user address words
· 16 fixed temporary addresses
· 16 operator messaging addresses
· 1600, 3200 and 6400 bits/s decoding
· Any-phase or single-phase decoding
· Uses standard Serial Peripheral Interface (SPI) in slave mode
· SSID and NID roaming support
· Backward compatible to the standard and roaming FLEXä decoder ICs
· Allows low current power-down mode operation of host processor
· Highly programmable receiver control
· Real-time clock time base
· FLEXä fragmentation and group messaging support
· Real-time clock over-the-air update support
· Compatible with synthesized receivers
· Low battery indication (external detector)
· Low cost LQFP32 plastic package
· Optional internal 4-level FSK demodulator and data slicer
· Operates using a 76.8 or 160 kHz crystal
· Very low power consumption
· Operates at low supply voltage
· Full support for revision 1.9 of the FLEXä protocol.


Application

· Numeric FLEXä pagers
· Alphanumeric FLEXä pagers
· Roaming FLEXä pagers
· Remote metering
· Car security systems
· Personal digital assistants.


Pinout

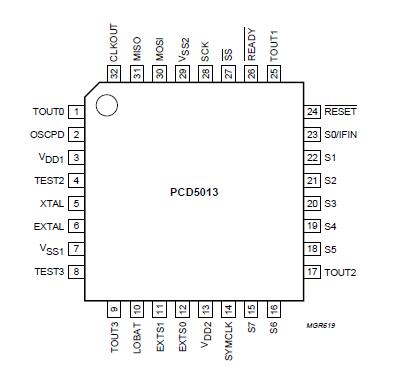

Connection Diagram


Description

This data sheet describes the operation of the PCD5013 integrated paging decoder. It is fully compatible with other FLEXchipä ICs including the PCD5008.

The PCD5013, also referred to as the decoder, simplifies implementation of a FLEXä paging device, by being able to interface with several off-the-shelf paging receivers and host microcontrollers/processors. PCD5013 primary function is to process information received and demodulated from a FLEXä radio paging channel, select messages addressed to the paging device and communicate the message information to the host.

The PCD5013 fully supports the FLEXä protocol (version G1.9) including all roaming aspects.

Motorola FLEXstackä software, installed on the product host processor, communicates with the PCD5013 and interprets the codewords that are passed to the host. The PCD5013 operates the paging receiver in an efficient power consumption mode and enables the host to operate in a low-power mode when monitoring a single channel for message information.
