PCA9561

Features: Selection of non-volatile register_n as source to MUX_OUT pinsvia I2C-busI2 C-bus can override MUX_SELECT pin in selecting outputsource6-bit 5-to-1 multiplexer DIP switch4 internal non-volatile registersInternal non-volatile registers programmable and readable via I2C -bus 6 open drain m...

product image

PCA9561 Picture
See larger image
SeekIC No. : 004456318 Detail

PCA9561: Features: Selection of non-volatile register_n as source to MUX_OUT pinsvia I2C-busI2 C-bus can override MUX_SELECT pin in selecting outputsource6-bit 5-to-1 multiplexer DIP switch4 internal non-vol...

PCA9561 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCA9561
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Selection of non-volatile register_n as source to MUX_OUT pinsvia I2C-bus
I2 C-bus can override MUX_SELECT pin in selecting outputsource
6-bit 5-to-1 multiplexer DIP switch
4 internal non-volatile registers
Internal non-volatile registers programmable and readable via I2C -bus
6 open drain multiplexed outputs
400 kHz maximum clock frequency
Operating supply voltage 3.0 V to 3.6 V
5 V and 2.5 V tolerant inputs
Useful for Speed Step configuration of laptop 2
2 address pins, allowing up to 4 devices on the I C-bus 2
MUX_IN values readable via I C-bus
ESD protection exceeds 200 V HBM per JESD22-A114,
200 V MM per JESD22-A115, and 1000 V CDM per JESD22-C101
Latch-up testing is done to JESDEC Standard JESD78 which exceeds 100 mA.


Pinout

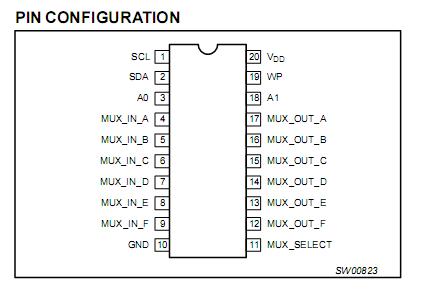

Connection Diagram

Connection Diagram




Description

DESCRIPTION
  The PCA9561 is a 20-pin CMOS device consisting of four 6-bit non-volatile EEPROM registers, 6 hardware pin inputs and a 6-bit multiplexed output. PCA9561 is used for DIP switch-free or jumper-less system configuration and supports Mobile and Desktop VID Configuration, where 5 preset values (4 sets of internal non-volatile registers and 1 set of external hardware pins) set processor voltage of PCA9561 for operation in various performance or battery conservation sleep modes.

    The PCA9561 is also useful in server and telecom/networking applications when used to replace DIP switches or jumpers, since the settings can be easily changed via I2C/SMBus without having to power down the equipment to open the cabinet. The non-volatile memory of PCA9561 retains the most current setting selected before the power is turned off.
