Product Details

Description



Features:

16-bit I 2C GPIO with interrupt and reset
Operating power supply voltage range of 2.3 V-5.5 V
5 V tolerant I/Os
Polarity inversion register
Active LOW interrupt output
Active LOW reset input
Low stand-by current
Noise filter on SCL/SDA inputs
No glitch on power-up
Internal power-on reset
16 I/O pins which default to 16 inputs
0 kHz to 400 kHz clock frequency
ESD protection exceeds 2000 V HBM per JESD22-A114,
200 V MM per JESD22-A115, and 1000 V CDM per JESD22-C101
Latch-up testing is done to JESDEC Standard JESD78 which exceeds 100 mA
Offered in three different packages: SO24, TSSOP24, and HVQFN24

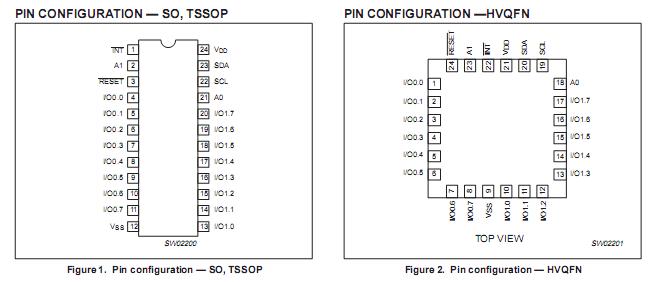

Pinout

Connection Diagram


Specifications

symbol partameter conditions MIN MAX unit
VDD Supply voltage   -0.5  6.0  V
VI/O DC voltage on an I/O   VSS- 0.5
 5.5  V
I I/O DC output current on an I/O    - +25  MA

ISS		 upply current    - 100  MA
Ptot Total power dissipation    - 400 °C
Tstg Storage temperature range    -65 +150 °C
Tamb Operating ambient temperature    -40  +85 °C



Description

   The PCA9539 is a 24-pin CMOS device that provide 16 bits of General Purpose parallel Input/Output (GPIO) expansion with interrupt of PCA9539 and reset for I2C/SMBus applications and was developed I/O expanders. I/O expanders to enhance the Philips family of I2C provides a simple solution when additional I/O is needed for ACPI power switches, sensors, pushbuttons, LEDs, fans, etc.

   The PCA9539 consists of two 8-bit Configuration (Input or Output selection); Input, Output and Polarity inversion (Active HIGH or Active LOW operation) registers. The system master can enable the I/Os as either inputs or outputs by writing to the I/O configuration bits. ThePCA9539 for each Input or Output is kept in the corresponding Input or Output register. The polarity of the read register PCA9539 can be inverted with the Polarity Inversion Register. All registers can be read by the system master.
