PCA9515

Features: FEATURES2 channel, bi-directional bufferI2 C-bus and SMBus compatibleActive-HIGH repeater enable inputOpen-drain input/outputsLock-up free operationSupports arbitration and clock stretching across the repeaterAccommodates standard mode and fast mode I 2C devices andmultiple mastersPowere...

product image

PCA9515 Picture
See larger image
SeekIC No. : 004456278 Detail

PCA9515: Features: FEATURES2 channel, bi-directional bufferI2 C-bus and SMBus compatibleActive-HIGH repeater enable inputOpen-drain input/outputsLock-up free operationSupports arbitration and clock stretchin...

PCA9515 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCA9515
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

FEATURES
2 channel, bi-directional buffer
I2 C-bus and SMBus compatible
Active-HIGH repeater enable input
Open-drain input/outputs
Lock-up free operation
Supports arbitration and clock stretching across the repeater
Accommodates standard mode and fast mode I 2C devices and
multiple masters
Powered-off high impedance I 2C pins
Operating supply voltage range of 3.0 V to 3.6 V
5.5 V tolerant I 2C and enable pins
0 to 400 kHz clock frequency
ESD protection exceeds 2000 V HBM per JESD22-A114,
200 V MM per JESD22-A115, and 1000 V CDM per
JESD22-C101.
Latch-up testing is done to JEDEC Standard JESD78 which
exceeds 100 mA.
Package offerings: SO and TSSOP

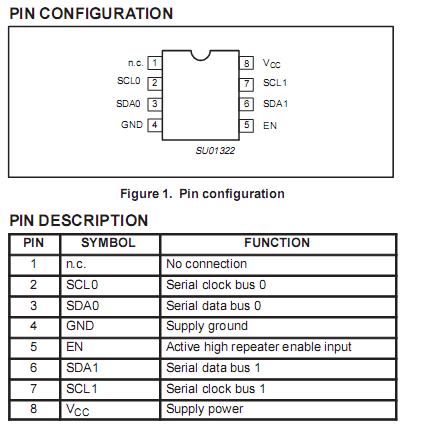

Pinout

Connection Diagram


Specifications

symbol partameter conditions RATING unit
MIN MAX
VCC  to GND
 Supply voltage range VCC
   -0.5  +7.0  V
Vbus
 Voltage range I 2C-bus, SCL or SDA    -0.5  +7.0  V
I DC input current    -  50  MA
Ptot Power dissipation    - 300  MW
Tstg Storage temperature range    -55  +250  °C
Tamb Operating ambient temperature    -40  +85  °C



Description

  The PCA9515 is a BiCMOS integrated circuit intended for application in I2Cand SMBus systems While retaining all the operating modes and features of the I2Csystem it permits extension of the I2C-bus by buffering both the data(SDA) and the clock (SCL) lines, thus enabling two buses of 400 pF. The I2 C-bus capacitance limit of 400 pF restricts the number of devices and bus length. Using the PCA9515 enables the system designer to isolate two halves of a bus, thus more devices or longer length can be accommodated.

   PCA9515 can also be used to run two buses, one at 5 V and the other at 3.3 V or a 400 kHz and 100 kHz bus, where the 100 kHz bus is isolated when 400 kHz operation of the
