PCA5010

Features: ` Operating temperature range: -10 to +55 °C` Supply voltage range with on-chip DC/DC converter: 0.9 to 1.6 V` Low operating and standby current consumption` On-chip DC/DC converter generates the supply voltage for the PCA5010 and external circuitry from a single cell battery` Battery lo...

product image

PCA5010 Picture
See larger image
SeekIC No. : 004456238 Detail

PCA5010: Features: ` Operating temperature range: -10 to +55 °C` Supply voltage range with on-chip DC/DC converter: 0.9 to 1.6 V` Low operating and standby current consumption` On-chip DC/DC converter genera...

PCA5010 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PCA5010
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating temperature range: -10 to +55 °C
` Supply voltage range with on-chip DC/DC converter: 0.9 to 1.6 V
` Low operating and standby current consumption
` On-chip DC/DC converter generates the supply voltage for the PCA5010 and external circuitry from a single cell battery
` Battery low detector
` Low electromagnetic noise emission
` Full static asynchronous 80C51 CPU (8-bit CPU)
` Recovery from lowest power standby Idle mode to full speed operation within microseconds
` 32 kbytes of One-Time Programmable (OTP) memory and 1.25 kbyte of RAM on-chip
` 27 general purpose I/O port lines (4 ports with interrupt possibility)
` 15 different interrupt sources with selectable priority
` 2 standard timer/event counters T0 and T1
` I2C-bus serial port (single 100/400 kHz master transmitter and receiver)
` Subset of standard UART serial port (8-bit and 9-bit transmission at 4800/9600 bits/s)
` 76.8 kHz crystal oscillator reference with digital clock correction for real time and paging protocol
` Real-Time Clock (RTC)
` Receiver and synthesizer control
Receiver control by software through general purpose I/Os
Synthesizer control by software through general purpose I/Os
6-bit DAC for AFC to the receiver local oscillator
Dedicated protocol timer.
` Decoding of paging data
POCSAG or APOC phase 1; advanced high speed paging protocols are also supported
Supported data rates: 1200, 1600, 2400, 3125 and 3200 symbols/s using a 76.8 kHz crystal oscillator
Demodulation of Zero-IF I and Q, 4 or 2 level FSK input or direct data input
Noise filtering of data input and symbol clock reconstruction
De-interleaving, error checking and correction, sync word detection address recognition, buffering and more is performed by software
All user functions (keypad interface, alerter control, display etc.) are implemented in software.
` Musical tone generator for beeper, controlled by the microcontroller
` Watchdog timer
` 48-pin LQFP package.


Pinout

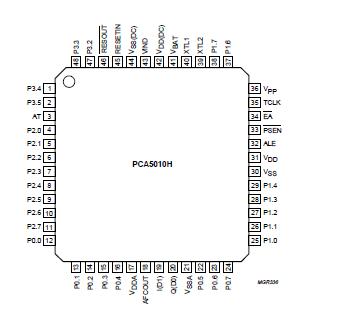

Connection Diagram


Specifications

SYMBOL PARAMETER
MIN.
MAX.
UNIT
VBAT battery supply voltage
-0.5
+2.0
V
VDD supply voltage
-0.5
+5.0
V
VI input voltage (all inputs)
-0.3
VDD + 0.3
V
II/O maximum sink/source current for all input/output pins
-10
+10
mA
IBAT, IIND maximum supply current for pins VBAT and VIND
-
100
mA
IDD maximum supply current for any supply pin
-
50
mA
Ptot total power dissipation
-
100
mW
VESD(HBM) maximum ESD stress level applied to VPP pin using human body model
-
2000
V
VESD(MM) maximum ESD stress level applied to VPP pin using machine model
-
200
V
Tstg storage temperature
-55
+125
°C
Tamb operating ambient temperature (for all devices)
-10
+55
°C
Note
1. Parameters are valid over operating temperature range unless otherwise specified. All voltages are with respect to VSS unless otherwise specified.


Description

The PCA5010 pager baseband controller is manufactured in an advanced CMOS/OTP technology. The PCA5010 is an 8-bit microcontroller especially suited for pagers. For this purpose, features such as a 4 or 2 level FSK demodulator, filter, clock recovery, protocol timer, DC/DC converter optimized for small paging systems and RTC are integrated on chip. The device is optimized for low power consumption.

The PCA5010 has several software selectable modes for power reduction: Idle and Power-down mode of themicrocontroller and Standby and OFF mode of the DC/DC converter.

The instruction set of the PCA5010 is based on that of the 80C51. The PCA5010 also functions as an arithmetic processor having facilities for both binary and BCD arithmetic plus bit-handling capabilities. The instruction set consists of over 100 instructions: 49 one-byte, 46 two-byte and 16 three-byte. This data sheet details the properties of the PCA5010. For details on the I2C-bus functions see "The I2C-bus and how to use it". For details on the basic 80C51 properties and features see "Data Handbook IC20".
