Features:

` 8-bit CPU, ROM, RAM, EEPROM and I/O; all in a 44-lead quad flat package
` 8 kbytes ROM; 256 bytes RAM
` 256 bytes Electrically Erasable Programmable Read Only Memory (EEPROM)
` Over 100 instructions (based on MAB8048) all of 1 or 2 cycles
` 36 quasi-bidirectional I/O port lines
` 8-bit programmable Timer/event counter 1
` 8-bit reloadable Timer 2
` Three single-level vectored interrupts:
external
8-bit programmable Timer/event counter 1
derivative; triggered by reloadable Timer 2
` Two test inputs, one of which also serves as the external interrupt input
` DTMF, modem, musical tone generator
` Reference for supply and temperature-independent tone output
` Filtering for low output distortion (CEPT compatible)
` Melody output for ringer application
` Programmable DTMF clock divider
` Power-on-reset
` Stop and Idle modes
` Supply voltage: 1.8 to 6 V (DTMF tone output and EEPROM erase/write from 2.5 V)
` CPU clock frequency: 1 to 16 MHz (3.58 MHz or 10.74 MHz for DTMF)
` Operating ambient temperature:
-25 to +70 °C (PCD3354A)
0 to 50 °C (PCA3354C)
` Manufactured in silicon gate CMOS process.


Pinout

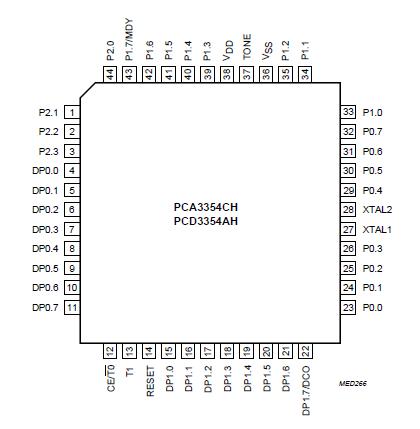

Connection Diagram


Description

This data sheet details the specific properties of the PCA3354C and PCD3354A. The shared properties of the PCD33xxA family of microcontrollers are described in the "PCD33xxA family" data sheet, which should be read in conjunction with this publication.

The PCA3354C and PCD3354A are microcontrollers oriented towards telephony applications. PCA3354C include 8 kbytes ROM, 256 bytes RAM, 36 I/O lines, and an on-chip generator for dual tone multifrequency (DTMF), modem and musical tones. In addition to dialling, the generated frequencies can be made available as square waves for melody generation, providing ringer operation.

The PCA3354C and PCD3354A also incorporate 256 bytes of EEPROM, permitting data storage without battery backup. The EEPROM can be used for storing telephone numbers, particularly for implementing redial functions.
The differences between PCA3354C and PCD3354A are shown in Table 1.
The instruction set is similar to the MAB8048 and is a sub-set of that listed in the "PCD33xxA family" data sheet.
