PCA2000

· Amplitude-regulated 32 kHz quartz crystal oscillator, with excellent frequency stability and high immunity to leakage currents
· Electrically programmable time calibration with 1 ppm resolution stored in One Time Programmable (OTP) memory
· The quartz crystal is the only external component connected
· Very low power consumption, typical 90 nA
· One second output pulses for bipolar stepping motor
· Minimum power consumption for the entire watch, due to self adaptation of the motor drive according to the required torque
· Reliable step detection circuit
· Motor pulse width, pulse modulation, and pulse adaptation range programmable in a wide range, stored in OTP memory
· Stop function for accurate time setting and power saving during shelf life
· End Of Life (EOL) indication for silver oxide or lithium battery (only the PCA2000 has the EOL feature)
· Test mode for accelerated testing of the mechanical parts and the IC.

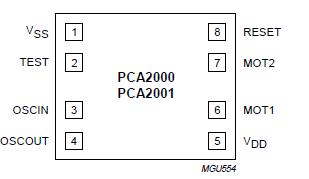

The PCA2000; PCA2001 are CMOS integrated circuits for battery operated wrist watches with a 32 kHz quartz crystal as timing element and a bipolar 1 Hz stepping motor. The quartz crystal oscillator of PCA2000 and the frequency divider are optimized for minimum power consumption. A timing accuracy of 1 ppm is achieved with a programmable, digital frequency adjustment. To obtain the minimum overall power consumption for the watch, an automatic motor pulse adaptation function is provided. The circuit supplies only the minimum drive current, which is necessary to ensure a correct motor step. Changing the drive current of the motor is achieved by chopping the motor pulse with a variable duty cycle. The pulse width of PCA2000 and the range of the variable duty cycle can be programmed to suit different types of motor. The automatic pulse adaptation scheme is based on a safe dynamic detection of successful motor steps. A pad RESET is provided (used for stopping the motor) for accurate time setting and for accelerated testing of the watch.

The PCA2000 has a battery EOL warning function. If the battery voltage drops below the EOL threshold voltage (which can be programmed for silver oxide or lithium batteries), the motor steps change from one pulse per second to a burst of four pulses every 4 seconds.

The PCA2001 uses the same circuit as the PCA2000, but without the EOL function.
