PC97338

Features: ` Meets ACPI 1.0 and PC98/99 requirements` Backward compatible with PC87338` 100% compatibility with Plug and Play requirements specified in the Hardware Design Guide for Microsoft Windows 95 , ISA, EISA, and Micro- Channel architectures` A special Plug and Play module includes:- Flexib...

product image

PC97338 Picture
See larger image
SeekIC No. : 004456197 Detail

PC97338: Features: ` Meets ACPI 1.0 and PC98/99 requirements` Backward compatible with PC87338` 100% compatibility with Plug and Play requirements specified in the Hardware Design Guide for Microsoft Window...

PC97338 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PC97338
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Meets ACPI 1.0 and PC98/99 requirements
` Backward compatible with PC87338
` 100% compatibility with Plug and Play requirements specified in the "Hardware Design Guide for Microsoft Windows 95", ISA, EISA, and Micro- Channel architectures
` A special Plug and Play module includes:
- Flexible IRQs, DMAs and base addresses
- General Interrupt Requests (IRQs) that can be multiplexed to the ten supported IRQs


Pinout

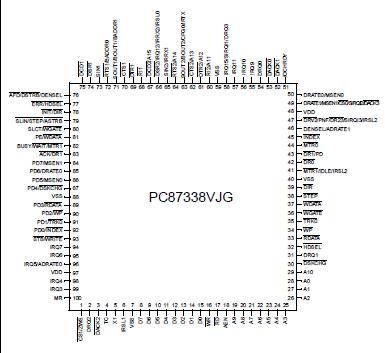

Connection Diagram




Specifications

Supply Voltage (VDD) ....... -0.5V to + 7.0V
Input Voltage (VI).......  -0.5 to VDD + 0.5V
Output Voltage (VO) ......-0.5 to VDD + 0.5V
Storage Temperature (TSTG) . -65°C to + 165°C
Power Dissipation (PD) ..............1W
Lead Temperature (TL)
(Soldering, 10 seconds) .......... +260°C
ESD Tolerance (Note 2) .........2000V min.
CZAP .......................100 pF
RZAP .......................1.5 kW


Description

The PC97338 is a fully ACPI 1.0 and PC98/99 compliant, ISA based Super I/O. It is functionally compatible with the PC87338. It includes a Floppy Disk Controller (FDC), two Serial Communication Controllers (SCC) for UART and Infrared support, one

IEEE1284 compatible Parallel Port, and two general purpose Chip Select signals for game port support. PC97338 supports power management as well as 3.3V and 5V mixed operation making it particularly suitable for notebook and sub-notebook applications. The PC87338 and PC97338 are fully compliant to the Plug and Play specifications included in the "Hardware Design Guide for Microsoft Windows 95".

Differences between the PC87338 and PC97338 are indicated in italics. These differences are summarized in Appendix A.
