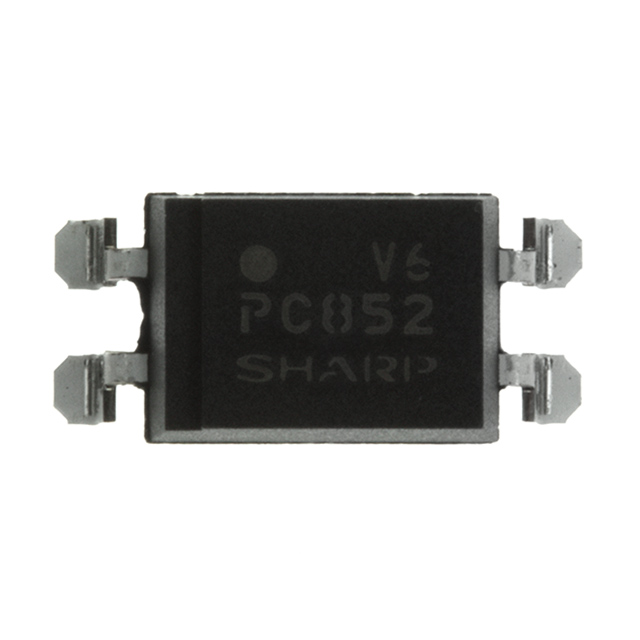

See larger image

SeekIC No. : 00103153 Detail

PC853XPJ000F: Transistor Output Optocouplers SMT PC853XJ0000F

PC853XPJ000F Data Sheet

Get Latest Price

Part Number:: PC853XPJ000F
Mfg:: Sharp Microelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PC851 evaluate
Features: · High collector-emitter voltage ( VCEO : 300V)· High isolation voltage between input an...
PC851X evaluate
PHOTOCOUPL HI VCE TRAN OUT 4DIP
PC851XI evaluate
PHOTOCOUPL HI VCE TRAN OUT 4SMD

Product Details

Quick Details

Input Type :	DC	Maximum Collector Emitter Voltage :	350 V
Maximum Collector Emitter Saturation Voltage :	1.2 V	Isolation Voltage :	5000 Vrms
Maximum Forward Diode Voltage :	1.4 V	Maximum Collector Current :	150 mA
Maximum Power Dissipation :	320 mW	Maximum Operating Temperature :	+ 100 C
Minimum Operating Temperature :	- 30 C	Package / Case :	PDIP-4 Gull Wing
Packaging :	Reel

Description

Current Transfer Ratio :
Isolation Voltage : 5000 Vrms
Packaging : Reel
Maximum Operating Temperature : + 100 C
Input Type : DC
Maximum Forward Diode Voltage : 1.4 V
Maximum Collector Emitter Saturation Voltage : 1.2 V
Maximum Collector Current : 150 mA
Package / Case : PDIP-4 Gull Wing
Minimum Operating Temperature : - 30 C
Maximum Power Dissipation : 320 mW
Maximum Collector Emitter Voltage : 350 V

Parameters:

Technical/Catalog Information	PC853XPJ000F
Vendor	Sharp Microelectronics (VA)
Category	Isolators
Isolation Voltage	5000Vrms
Input Type	DC
Output Type	Darlington
Current - Output/Channel	150mA
Voltage - Output	350V
Vce Saturation (Max)	300mV
Current Transfer Ratio (Min)	-
Mounting Type	Surface Mount
Package / Case	4-SMD
Packaging	Digi-Reel?
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PC853XPJ000F PC853XPJ000F 425 2660 6 ND 42526606ND 425-2660-6
