PC713V2NSZXF, US $ .23-.41 , Sharp Microelectronics, PC713V2NSZXF DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 0098336 Detail

PC713V2NSZXF: Transistor Output Optocouplers PC123J00000F series

PC713V2NSZXF Data Sheet

US $ .23~.41 / Piece | Get Latest Price

Part Number:: PC713V2NSZXF
Mfg:: Sharp Microelectronics
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~500

Unit Price
$.41
$.35
$.28
$.23

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PC712A evaluate
US $1.39 - 2.1 / Piece

DC Power Connectors 2.5MM PC-MT

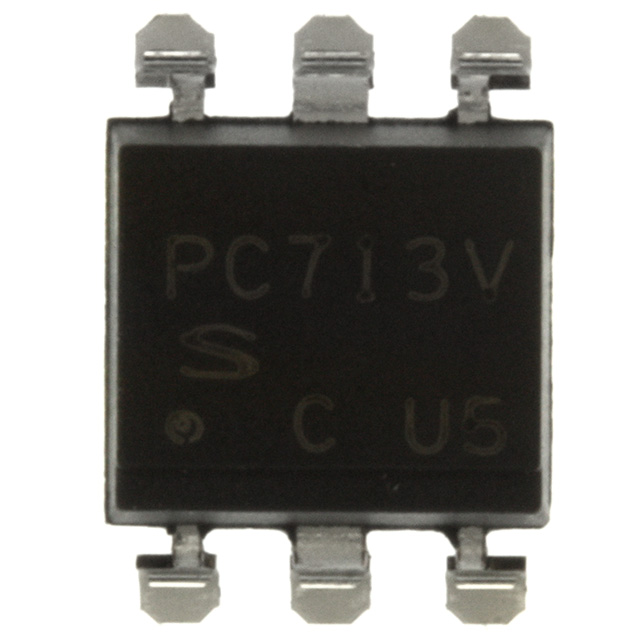

PC713V0NIZXF evaluate
US $.16 - .38 / Piece

PHOTOCOUPLER HI VCE TRAN 6-SMD
PC713V0NSZX evaluate
PHOTOCOUPLER TRAN OUT 6-DIP

Product Details

Quick Details

Input Type :	DC	Maximum Collector Emitter Voltage :	80 V
Maximum Collector Emitter Saturation Voltage :	0.2 V	Isolation Voltage :	5000 Vrms
Current Transfer Ratio :	600 %	Maximum Forward Diode Voltage :	1.4 V
Maximum Collector Current :	50 mA	Maximum Power Dissipation :	170 mW
Maximum Operating Temperature :	+ 100 C	Minimum Operating Temperature :	- 25 C
Package / Case :	PDIP-6	Packaging :	Sleeve

Description

Maximum Collector Emitter Voltage : 80 V
Isolation Voltage : 5000 Vrms
Maximum Operating Temperature : + 100 C
Maximum Collector Current : 50 mA
Input Type : DC
Maximum Forward Diode Voltage : 1.4 V
Maximum Collector Emitter Saturation Voltage : 0.2 V
Current Transfer Ratio : 600 %
Package / Case : PDIP-6
Maximum Power Dissipation : 170 mW
Minimum Operating Temperature : - 25 C
Packaging : Sleeve

Parameters:

Technical/Catalog Information	PC713V2NSZXF
Vendor	Sharp Microelectronics
Category	Isolators
Voltage - Isolation	5000Vrms
Input Type	DC
Output Type	Transistor with Base
Current - Output / Channel	50mA
Voltage - Output	80V
Vce Saturation (Max)	200mV
Current Transfer Ratio (Min)	50% @ 5mA
Mounting Type	Through Hole
Package / Case	6-DIP
Packaging	Tube
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PC713V2NSZXF PC713V2NSZXF
