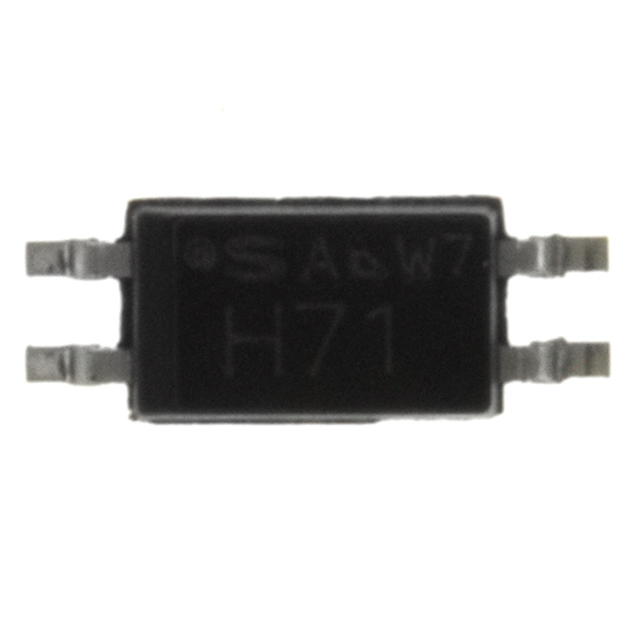

PC3H715NIP0F: Transistor Output Optocouplers Low IfHigh CMR PC3H7ABJ000F

PC3H715NIP0F Data Sheet

US $ .17~.17 / Piece | Get Latest Price

Part Number:: PC3H715NIP0F
Mfg:: Sharp Microelectronics
Supply Ability:: 5000

Price Break

Qty
0~9300

Unit Price
$.17

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PC3H2DJ0000F evaluate
Transistor Output Optocouplers CTR 24% - 48% verison of PC3H2J00000F
PC3H2J00000F evaluate
Transistor Output Optocouplers 4 mini flat pack, 3Kpcs T&R
PC3H4 evaluate
PHOTOCOUPLER AC INPUT 4-SMD

Product Details

Quick Details

Input Type :	DC	Maximum Collector Emitter Voltage :	80 V
Maximum Collector Emitter Saturation Voltage :	0.2 V	Isolation Voltage :	2500 Vrms
Current Transfer Ratio :	700 %	Maximum Forward Diode Voltage :	1.4 V
Maximum Collector Current :	50 mA	Maximum Power Dissipation :	170 mW
Maximum Operating Temperature :	+ 100 C	Minimum Operating Temperature :	- 30 C
Package / Case :	SMD-4	Packaging :	Reel

Description

Maximum Collector Emitter Voltage : 80 V
Packaging : Reel
Maximum Operating Temperature : + 100 C
Maximum Collector Current : 50 mA
Input Type : DC
Maximum Forward Diode Voltage : 1.4 V
Maximum Collector Emitter Saturation Voltage : 0.2 V
Isolation Voltage : 2500 Vrms
Package / Case : SMD-4
Maximum Power Dissipation : 170 mW
Minimum Operating Temperature : - 30 C
Current Transfer Ratio : 700 %

Parameters:

Technical/Catalog Information	PC3H715NIP0F
Vendor	Sharp Microelectronics
Category	Isolators
Isolation Voltage	2500Vrms
Input Type	DC
Output Type	Transistor
Current - Output/Channel	50mA
Voltage - Output	80V
Vce Saturation (Max)	200mV
Current Transfer Ratio (Min)	100% @ 500A
Mounting Type	Surface Mount
Package / Case	4-SMD
Packaging	Tape & Reel (TR)
Number of Circuits	1 - Single
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PC3H715NIP0F PC3H715NIP0F 425 2111 2 ND 42521112ND 425-2111-2
