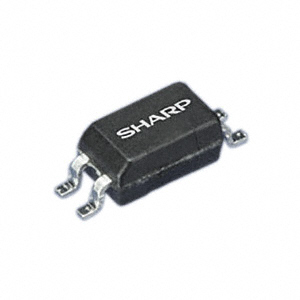

PC3H4A

Series: -
Number of Channels: 1
Voltage - Output: 80V
Current - Output / Channel: 50mA
Output Type: Transistor
Mounting Type: Surface Mount
Input Type: AC, DC
Current - DC Forward (If): ±50mA
Package / Case: 4-SMD
Vce Saturation (Max): 200mV
Current Transfer Ratio (Min): 20% @ 1mA
Current Transfer Ratio (Max): 400% @ 1mA
Packaging: Cut Tape (CT)
Voltage - Isolation: 2500Vrms
Manufacturer: Sharp Microelectronics


Description

The PC3H4A is designed as one kind of SHAPP OPTO electronic photocouplers.

Some absolute maximum ratings of PC3H4A have been concluded into several points as follow. (1)Its input forward current would be +/-50mA. (2)Its peak forward current would be +/-1A. (3)Its power dissipation would be 70mW. (4)Its collector to emitter voltage would be 70V. (5)Its emitter to collector voltage would be 6V. (6)Its collector current would be 50mA. (7)Its collector power dissipation would be 150mW. (8)Its total power dissipation would be 170mW. (9)Its operating temperature range would be from -30°C to 100°C. (10)Its storage temperature range would be from -40°C to 125°C. (11)Its isolation voltage would be 2.5kV. (12)Its soldering temperature would be 260°C. It should be noted that stresses above those listed in absolute maximum ratings may cause permanent damage to device.

Also some electrical characteristics of PC3H4A are concluded as follow. (1)Its input forward voltage would be typ 1.2V and max 1.4V. (2)Its input terminal capacitance would be typ 30pF and max 250pF. (3)Its output dark current would be max 100nA. (4)Its collector to emitter breakdown voltage would be min 70V. (5)Its emitter to collector breakdown voltage would be min 6V. (6)Its transfer collector current would be min 0.2mA and max 4.0mA. (7)Its collector to emitter saturation voltage would be typ 0.1V and max 0.2V. (8)Its isolation resistance would be min 5x10^10ohms and typ 10^11ohms. (9)Its floating capacitance would be typ 0.6pF and max 1.0pF. (10)Its rise time would be typ 4us and max 18us. (11)Its fall time would be typ 3us and max 18us. And so on. At present we have not got so much information about this IC and we would try hard to get more information about it. If you have any question or suggestion or want to know more information please visit our website and contact us for details. Thank you!
