PC357N3 Selling Leads, Price trend, PC357N3 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 003598863 Detail

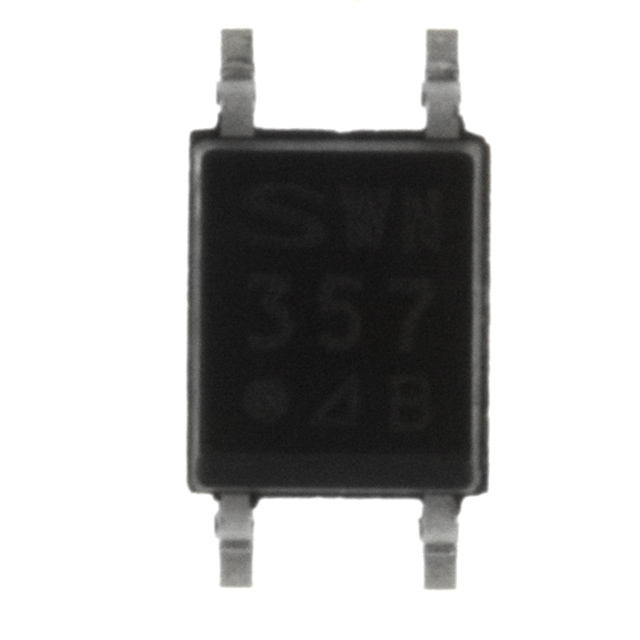

PC357N3: PHOTOCOUPLER 1CH TRAN OUT 4-SMD

PC357N3 Data Sheet

Get Latest Price

Part Number:: PC357N3
Mfg:
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PC353T evaluate
PHOTOCOUPLER TRAN W/BASE 5-SMD
PC353TJ0000F evaluate
Transistor Output Optocouplers DC InputPT outputOP5
PC354 evaluate
DescriptionThe PC354 is designed as one kind of OPTO electronic photocouplers.Some absolute maximu...

Product Details

Quick Details

Series:	-	Manufacturer:	Sharp Microelectronics
Standard Supported :	IEEE 802.3	Number of Channels:	1
Input Type:	DC	Voltage - Isolation:	3750Vrms
Current Transfer Ratio (Min):	50% @ 5mA	Current Transfer Ratio (Max):	600% @ 5mA
Voltage - Output:	80V	Current - Output / Channel:	50mA
Current - DC Forward (If):	50mA	Vce Saturation (Max):	200mV
Output Type:	Transistor	Mounting Type:	Surface Mount
Package / Case:	4-SMD

Description

Series: -
Number of Channels: 1
Input Type: DC
Voltage - Output: 80V
Current - Output / Channel: 50mA
Output Type: Transistor
Mounting Type: Surface Mount
Voltage - Isolation: 3750Vrms
Current Transfer Ratio (Min): 50% @ 5mA
Current - DC Forward (If): 50mA
Current Transfer Ratio (Max): 600% @ 5mA
Package / Case: 4-SMD
Vce Saturation (Max): 200mV
Packaging: Cut Tape (CT)
Manufacturer: Sharp Microelectronics

Parameters:

Technical/Catalog Information	PC357N3
Vendor	Sharp Microelectronics (VA)
Category	Isolators
Voltage - Isolation	3750Vrms
Input Type	DC
Output Type	Transistor
Current - Output / Channel	50mA
Voltage - Output	80V
Vce Saturation (Max)	200mV
Current Transfer Ratio (Min)	50% @ 5mA
Mounting Type	Surface Mount
Package / Case	4-SMD
Packaging	Cut Tape (CT)
Number of Circuits	1 - Single
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	PC357N3 PC357N3 425 1332 1 ND 42513321ND 425-1332-1
