SeekIC No. : 004196319 Detail

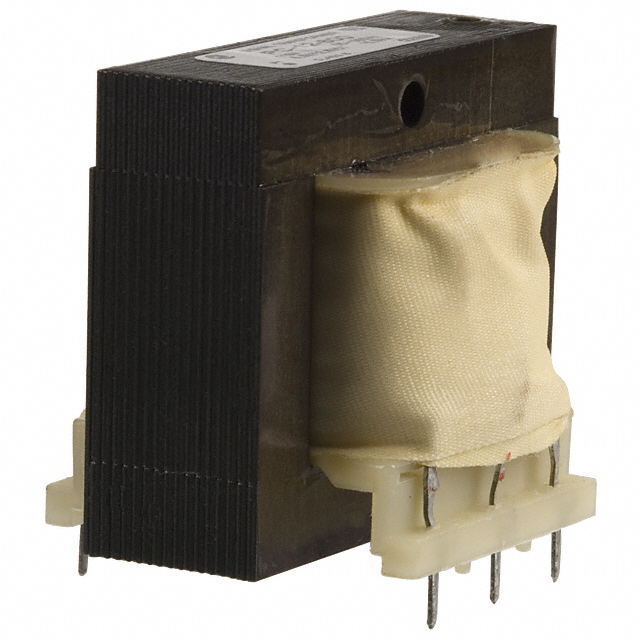

PC-34-300: XFRMR PWR 115V 34VCT 300MA

PC-34-300 Data Sheet

US $ 4.25~4.25 / Piece | Get Latest Price

Part Number:: PC-34-300
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~50

Unit Price
$4.25

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PC-326 evaluate
Test Accessories - Other POWER CORD
PC-34-125 evaluate
US $3.04 - 5.81 / Piece

XFRMR PWR 115V 34VCT 125MA

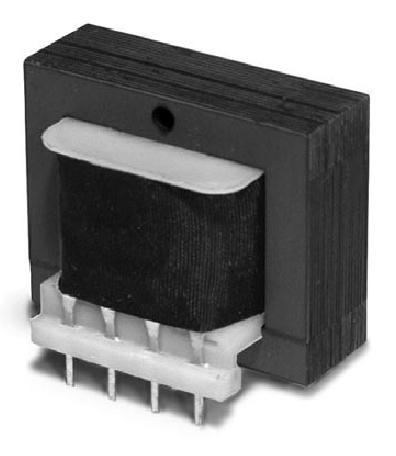

PC-34-125B22 evaluate
US $8.84 - 11.78 / Piece

Transformers Audio & Signal VERT. PC MOUNT XFMR

Product Details

Quick Details

Series:	PC	Manufacturer:	Signal Transformer
Transformer Type:	-	Number of Channels per Chip :	5
Type:	Standard	Maximum Power:	10 VA
Turns Ratio - Primary:Secondary:	-	Inductance:	-
Primary Winding(s):	Single	Current Rating:	-
Secondary Winding(s):	Dual, No Center Tap	DC Resistance (DCR):	-
Series Output Voltage @ Current:	34 VAC @ 300mA	E.T.:	-
Parallel Output Voltage @ Current:	17 VAC @ 600mA	Mounting Type:	Through Hole
Size / Dimension:	47.60mm L x 36.50mm W	Height - Seated (Max):	41.27mm

Description

Series: PC
Manufacturer: Signal Transformer
Transformer Type: -
Type: Standard
Turns Ratio - Primary:Secondary: -
Inductance: -
Primary Winding(s): Single
Current Rating: -
Secondary Winding(s): Dual, No Center Tap
DC Resistance (DCR): -
E.T.: -
Mounting Type: Through Hole
Termination Style: PC Pin
Maximum Power: 10 VA
Size / Dimension: 47.60mm L x 36.50mm W
Height - Seated (Max): 41.27mm
Series Output Voltage @ Current: 34 VAC @ 300mA
Parallel Output Voltage @ Current: 17 VAC @ 600mA

Parameters:

Technical/Catalog Information	PC-34-300
Vendor	Signal Transformers
Category	Transformers
Mounting Type	Through Hole
Type	Standard
Primary Winding(s)	Single
Secondary Winding(s)	Dual, No Center Tap
Series Output Voltage @ Current	34 VAC @ 300mA
Parallel Output Voltage @ Current	17 VAC @ 600mA
Maximum Power	10 VA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PC 34 300 PC34300 595 1125 ND 5951125ND 595-1125
