SeekIC No. : 004197097 Detail

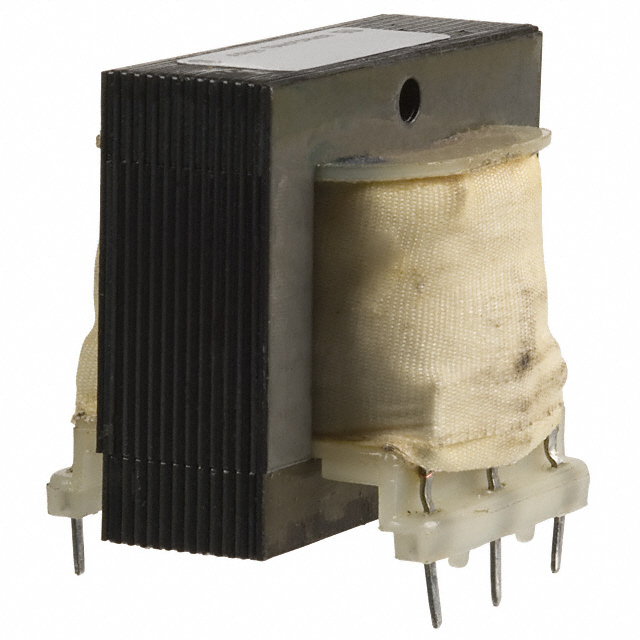

PC-16-260: XFRMR PWR 115V 16VCT 260MA

PC-16-260 Data Sheet

US $ 3.04~5.81 / Piece | Get Latest Price

Part Number:: PC-16-260
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100

Unit Price
$5.81
$4.42
$3.87
$3.43
$3.04

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

PC-10-1000 evaluate
US $4.25 - 4.25 / Piece

XFRMR PWR 115V 5V 2A 10VA
PC-10-1000B3 evaluate
US $8.77 - 10.97 / Piece

Transformers Audio & Signal VERT. PC MOUNT XFMR
PC-10-120 evaluate
US $2.69 - 2.69 / Piece

XFRMR PWR 115V 5V 240MA 1.2VA

Product Details

Quick Details

Series:	PC	Manufacturer:	Signal Transformer
Transformer Type:	-	Number of Channels per Chip :	5
Type:	Standard	Maximum Power:	4.4 VA
Turns Ratio - Primary:Secondary:	-	Inductance:	-
Primary Winding(s):	Single	Current Rating:	-
Secondary Winding(s):	Dual, No Center Tap	DC Resistance (DCR):	-
Series Output Voltage @ Current:	16 VAC @ 260mA	E.T.:	-
Parallel Output Voltage @ Current:	8 VAC @ 520mA	Mounting Type:	Through Hole
Size / Dimension:	41.30mm L x 31.80mm W	Height - Seated (Max):	34.92mm

Description

Series: PC
Manufacturer: Signal Transformer
Transformer Type: -
Type: Standard
Turns Ratio - Primary:Secondary: -
Inductance: -
Primary Winding(s): Single
Current Rating: -
Secondary Winding(s): Dual, No Center Tap
DC Resistance (DCR): -
E.T.: -
Mounting Type: Through Hole
Termination Style: PC Pin
Maximum Power: 4.4 VA
Size / Dimension: 41.30mm L x 31.80mm W
Height - Seated (Max): 34.92mm
Series Output Voltage @ Current: 16 VAC @ 260mA
Parallel Output Voltage @ Current: 8 VAC @ 520mA

Parameters:

Technical/Catalog Information	PC-16-260
Vendor	Signal Transformers
Category	Transformers
Mounting Type	Through Hole
Type	Standard
Primary Winding(s)	Single
Secondary Winding(s)	Dual, No Center Tap
Series Output Voltage @ Current	16 VAC @ 260mA
Parallel Output Voltage @ Current	8 VAC @ 520mA
Maximum Power	4.4 VA
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PC 16 260 PC16260 595 1108 ND 5951108ND 595-1108
