PBD35171

Features: • Complete driver and phase logic on chip• 2 x 350 mA continuous-output current• Half- and full-step mode generation• LS-TTL-compatible inputs• Bilevel drive mode for high step rates• Voltage-doubling drive possibilities• Half-step position-indic...

product image

PBD35171 Picture
See larger image
SeekIC No. : 004455513 Detail

PBD35171: Features: • Complete driver and phase logic on chip• 2 x 350 mA continuous-output current• Half- and full-step mode generation• LS-TTL-compatible inputs• Bilevel drive ...

PBD35171 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
PBD35171
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Complete driver and phase logic on chip
• 2 x 350 mA continuous-output current
• Half- and full-step mode generation
• LS-TTL-compatible inputs
• Bilevel drive mode for high step rates
• Voltage-doubling drive possibilities
• Half-step position-indication output
• Minimal RFI
• 16-pin plastic DIP package or 16 pin small outline wide body

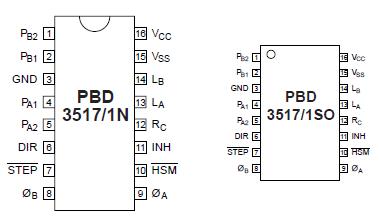

Pinout

Connection Diagram


Specifications

Parameter Pin No. Symbol Min Max Units
Voltage
Logic supply 16 VCC 0 7 V
Second supply 15 VSS 0 45 V
Logic input 6, 7, 10, 11 VI -0.3 6 V
Current
Phase output 1, 2, 4, 5 IP 0 500 mA
Second-level output 13, 14 IL -500 0 mA
Logic input 6, 7, 10, 11 II -10   mA
The zero output 8, 9 IO   6 mA
Temperature
Operating junction temperature   TJ -40 +150
Storage temperature   TS -55 +150
Power Dissipation (Package Data)
Power dissipation at TA = 25, DIP package. Note 2.   PD   1.6 W
Power dissipation, SO package. Note 3.   PD   1.3 W



Description

PBD 3517/1 is a bipolar, monolithic, integrated circuit, intended to drive a stepper motor in a unipolar, bilevel way.

One PBD 3517/1 and a minimum of external components form a complete control and drive unit for LS-TTL- or microprocessor-controlled stepper motor system for currents up to 500mA. PBD35171 is suited for applications requiring least-posssible RFI.

Motor performance of PBD35171 can be increased by operating in a bilevel drive mode. This means that a high voltage pulse is applied to the motor winding at the beginning of a step, in order to give a rapid rise of current.
