PACNLT101

CAMD's non-linear termination IC PACNLT101 is specifically de signed to minimize overshoot/undershoot disturbances caused by impedance mismatch reflections and noise on high-speed transmission lines.

Reflections of PACNLT101 on high-speed data lines lead to voltage overshoot and undershoot disturbances, PACNLT101 may result in data loss or improper system operation. Resis- tive terminations, when used to terminate these high- speed data lines, increase power consumption and degrade output levels, resulting in reduced noise immu- nity. Clamping-type termination of PACNLT101 is the best overall solution for applications in which these may be consider- ations.

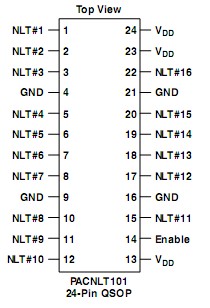

This highly integrated non-linear termination IC PACNLT101 provides very effective termination performance for high-speed data lines under variable loading conditions. PACNLT101 spports up to 16 terminated lines per package - eac of which are clamped to both ground and power supply rail. A typical application may use 4 devices to replace (and outperform) 64 conventional Schottky diode pairs; thus providing significant reductions in component and assembly costs, improvements in manufacturing effi- ciency and reliability, and savings in allocated board area for space-critical designs.
