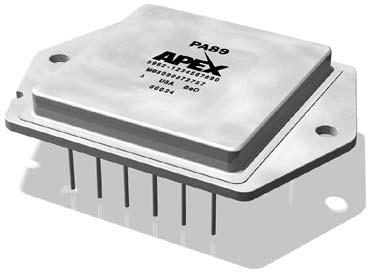

PA89

Operating Supply Voltage :
Output Current :
Packaging :
Number of Channels : 2
Shutdown : No
Input Offset Voltage : 2 mV
Maximum Operating Temperature : + 85 C
Mounting Style : Through Hole
Common Mode Rejection Ratio (Min) : 96 dB
Input Bias Current (Max) : 50 pA
Slew Rate : 16 V/us
Package / Case : Power DIP


Features:

• 1140V P-P SIGNAL OUTPUT
• WIDE SUPPLY RANGE - ±75V to ±600V
• PROGRAMMABLE CURRENT LIMIT
• 75 mA CONTINUOUS OUTPUT CURRENT
• HERMETIC SEALED PACKAGE
• INPUT PROTECTION




Application

• PIEZOELECTRIC POSITIONING
• HIGH VOLTAGE INSTRUMENTATION
• ELECTROSTATIC DEFLECTION
• SEMICONDUCTOR TESTING




Specifications

SUPPLY VOLTAGE, +VS to VS	1200V
OUTPUT CURRENT, within SOA	100mA
POWER DISSIPATION, continuous @ TC = 25	40W
INPUT VOLTAGE, differential	±25V
INPUT VOLTAGE, common mode
TEMPERATURE, pin solder-10s max	300
TEMPERATURE, junction2	150
TEMPERATURE RANGE, storage	65 to 125
OPERATING TEMPERATURE RANGE, case	55 to 125

Description

The PA89 is an ultra high voltage, MOSFET operational amplifier designed for output currents up to 75 mA. Output voltages can swing over 1000V p-p. The safe operating area (SOA) has no second breakdown limitations and can be observed with all types of loads by choosing an appropriate current limiting resistor. High accuracy is achieved with a cascode input circuit configuration and 120dB open loop gain. All internal biasing of PA89 is referenced to a bootstrapped zener- MOSFET current source, giving the PA89 a wide supply range and excellent supply rejection. The MOSFET output stage is biased for class A/B linear operation. External compensation provides user flexibility. The PA89 is 100% gross leak tested to military standards for long term reliability.

This hybrid integrated circuit of PA89 utilizes a beryllia (BeO) substrate, thick film resistors, ceramic capacitors and semiconductor chips to maximize reliability, minimize size of PA89 and give top pe formance. Ultrasonically bonded aluminum wires provide reliable interconnections at all operating temperatures. The MO-127 High Voltage, Power Dip™ package is hermetically sealed and electrically isolated.

Parameters:

Technical/Catalog Information	PA89
Vendor	Cirrus Logic Inc
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	Power
Number of Circuits	1 - Single
Package / Case	12-DIP Module
Slew Rate	16 V/s
Gain Bandwidth Product	10MHz
Current - Supply	4.8mA
Current - Output / Channel	75mA
Voltage - Supply, Single/Dual (±)	150 V ~ 1200 V, ±75 V ~ 600 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	5pA
Operating Temperature	-25°C ~ 85°C
Voltage - Input Offset	500V
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PA89 PA89 598 1329 ND 5981329ND 598-1329
