PA04A

Operating Supply Voltage :
Output Current :
Packaging :
Number of Channels : 1
Shutdown : No
Maximum Operating Temperature : + 85 C
Input Bias Current (Max) : 20 pA
Mounting Style : Through Hole
Input Offset Voltage : 5 mV
Common Mode Rejection Ratio (Min) : 86 dB
Slew Rate : 50 V/us
Package / Case : Power DIP


Features:

• HIGH INTERNAL DISSIPATION - 200 WATTS
• HIGH VOLTAGE, HIGH CURRENT - 200V, 20A
• HIGH SLEW RATE - 50V/mS
• 4 WIRE CURRENT LIMIT SENSING
• LOW DISTORTION
• EXTERNAL SLEEP MODE CONTROL
• OPTIONAL BOOST VOLTAGE INPUTS
• EVALUATION KIT - SEE EK04


Application

• SONAR TRANSDUCER DRIVER
• LINEAR AND ROTARY MOTOR DRIVES
• YOKE/MAGNETIC FIELD EXCITATION
• PROGRAMMABLE POWER SUPPLIES TO ±95V
• AUDIO UP TO 400W

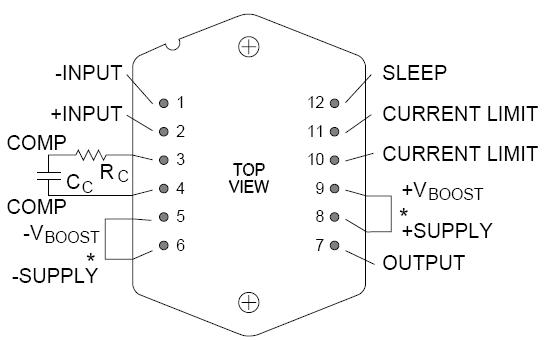

Pinout




Specifications

SUPPLY VOLTAGE, +VS to VS ........................................200V
BOOST VOLTAGE SUPPLY VOLTAGE................................ +20V
OUTPUT CURRENT, within SOA .........................................20A
POWER DISSIPATION, internal...................................... 200W
INPUT VOLTAGE, differential.......................................... ±20V
INPUT VOLTAGE, common mode...................................... ±VS
TEMPERATURE, pin solder ...................................- 10s 300°C
TEMPERATURE, junction2 .............................................150°C
TEMPERATURE, storage ..................................65 to +150°C
OPERATING TEMPERATURE RANGE, case ........55 to +125°C


Description

The PA04 is a high voltage MOSFET power operational amplifier that extends the performance limits of power amplifiersin slew rate and power bandwidth, while maintaining high current and power dissipation ratings.

The PA04 is a highly flexible amplifier. The sleep mode feature allows ultra-low quiescent current for standby operation or load protection by disabling the entire amplifier. Boost voltage inputs allow the small signal portion of the amplifier to operate at a higher voltage than the high current output stage. The amplifier is then biased to achieve close linear swings to the supply rails at high currents for extra efficient operation. External compensation tailors performance to user needs. A four wire sense technique allows precision current limiting without the need to consider internal or external milliohm parasitic resistance in the output line.

The JEDEC MO-127 12-pin Power Dip™ package (see Package Outlines) is hermetically sealed and isolated from the internal circuits. The use of compressible thermal washers will void product warranty.

Parameters:

Technical/Catalog Information	PA04A
Vendor	Cirrus Logic Inc
Category	Integrated Circuits (ICs)
Packaging	Tube
Amplifier Type	Power
Number of Circuits	1 - Single
Package / Case	12-DIP Module
Slew Rate	50 V/s
Gain Bandwidth Product	2MHz
Current - Supply	70mA
Current - Output/Channel	20A
Voltage - Supply, Single/Dual (±)	30 V ~ 200 V, ±15 V ~ 100 V
Output Type	-
-3db Bandwidth	-
Current - Input Bias	5pA
Operating Temperature	-25°C ~ 85°C
Voltage - Input Offset	2000V
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	PA04A PA04A 598 1290 ND 5981290ND 598-1290
