P8xCE598

Features: · 80C51 central processing unit (CPU)· 32 kbytes on-chip ROM, externally expandible to 64 kbytes· 2 ´ 256 bytes on-chip RAM,externally expandible to 64 kbytes· Two standard 16-bit timers/counters· One additional 16-bit timer/counter coupled to four capture and three compare registe...

product image

P8xCE598 Picture
See larger image
SeekIC No. : 004453789 Detail

P8xCE598: Features: · 80C51 central processing unit (CPU)· 32 kbytes on-chip ROM, externally expandible to 64 kbytes· 2 ´ 256 bytes on-chip RAM,externally expandible to 64 kbytes· Two standard 16-bit ti...

P8xCE598 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
P8xCE598
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 80C51 central processing unit (CPU)
· 32 kbytes on-chip ROM, externally expandible to 64 kbytes
· 2 ´ 256 bytes on-chip RAM,externally expandible to 64 kbytes
· Two standard 16-bit timers/counters
· One additional 16-bit timer/counter coupled to four capture and three compare registers
· 10-bit ADC with 8 multiplexed analog inputs
· Two 8-bit resolution Pulse Width Modulated outputs
· 15 interrupt sources with 2 priority levels
   (2 to 6 external interrupt sources possible)
· Five 8-bit I/O ports, plus one 8-bit input port shared with analog inputs
· CAN-controller (CAN = Controller Area Network)
   with DMA data transfer facility to internal RAM
· 1 Mbit/s CAN-controller with bus failure management facility
· 1¤2AVDD reference voltage
· Full-duplex UART compatible with the standard 80C51
· On-chip Watchdog Timer (WDT)
· 1.2 to 16 MHz clock frequency
· Improved Electromagnetic Compatibility (EMC).


Pinout

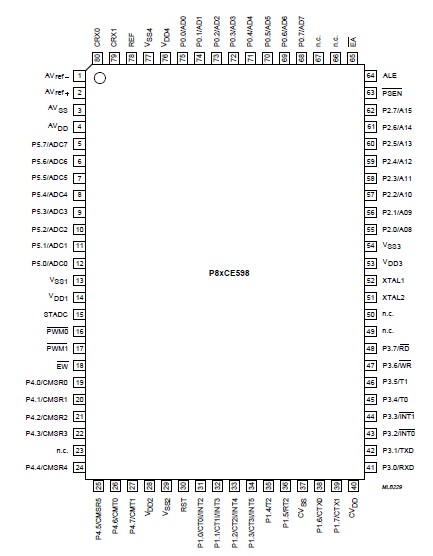

Connection Diagram


Specifications

SYMBOL PARAMETER MIN. MAX. UNIT
VDD voltage on VDD pins -0.5 +6.5 V
VI (note 1) input voltage on any pin
(except CTX0, CTX1, CRX0, CRX1 and EA/VPP)		 -0.5 VDD + 0.5 V
VI (note 2) input voltage on EA/VPP to VSS -0.5 +13 V
II, IO input/output current on any single I/O pin
(except from CTX0 and CTX1)		 - ±10 mA
IOT sink current of CTX0, CTX1 together - 30 mA
source current of CTX0, CTX1 together - -20 mA
Ptot total power dissipation (note 2) - 1.0 W
Tstg storage temperature range -65 +150 °C
Tamb operating ambient temperature range:
P83CE598 FFB/P80CE598 FFB
P83CE598 FHB/P80CE598 FHB 		-40
-40
+85
+125 		°C
°C



Description

The P8xCE598 is a single-chip 8-bit high-performance microcontroller with on-chip CAN-controller, derived from the 80C51 microcontroller family.

P8xCE598 uses the powerful 80C51 instruction set. Figure 1 shows a block diagram of the P8xCE598. The P8xCE598 is manufactured in an advanced CMOS process, and is designed for use in automotive and general industrial applications. In addition to the 80C51 standard features, the device provides a number of dedicated hardware functions for these applications.
